Simultaneous improvement of three parameters using a binary processing solvent system approach in as-cast non-fullerene solar cells

Author affiliations

Abstract

As-cast polymer solar cells without any additive and pre- or post-treatments principally have high compatibility with mass production technologies, and efforts in achieving higher efficiencies are typically promoted by engineering new donor and acceptor materials. In this study, a binary solvent processing approach using chloroform (CF), as a good low boiling point solvent for both the donor polymer PTQ10 and the non-fullerene acceptor IT-4Cl, and mesitylene (MES), as a semi-orthogonal co-solvent with relatively high boiling point and weak solubility to the acceptor, is explored. Due to the selective orthogonality of MES to the IT-4Cl acceptor, an optimized morphology has been realized for the as-cast device based on the PTQ10:IT-4Cl blend, which leads to a simultaneous improvement in the open-circuit voltage, short-circuit current, and fill factor, finally achieving a high as-cast efficiency of over 13%. Furthermore, the as-cast devices fabricated with this binary solvent system exhibit good air stability and great accessibility in large area cells. Our findings provide an alternative guideline for the optimization of as-cast polymer solar cells.

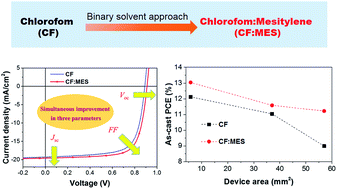

Graphical abstract: Simultaneous improvement of three parameters using a binary processing solvent system approach in as-cast non-fullerene solar cells

Back to tab navigation

Supplementary files

Publication details

The article was received on 02 Oct 2019, accepted on 23 Oct 2019 and first published on 23 Oct 2019


Article type: Paper
DOI: 10.1039/C9TA10887D
J. Mater. Chem. A, 2019,7, 25978-25984

  •   Request permissions

    Simultaneous improvement of three parameters using a binary processing solvent system approach in as-cast non-fullerene solar cells

    G. Qin, L. Zhang, D. Yuan, H. Jiang, W. Tang, M. Chen, W. Wu, Y. Cao and J. Chen, J. Mater. Chem. A, 2019, 7, 25978
    DOI: 10.1039/C9TA10887D
