Designing a new aluminium muconate metal–organic framework (MIL-53-muc) as a methanol adsorbent for sub-zero temperature heat transformation applications

Author affiliations

Abstract

Employing methanol as an adsorbate can enable adsorption-driven heat pumps and chillers to operate at/or achieve temperatures below 0 °C, provided an appropriate pairing adsorbent is made available. By applying the principle of reticular chemistry, an isoreticular twofold expansion of aluminium fumarate was designed and synthesized using trans,trans-muconate as a linker to a new aluminium metal–organic framework (MOF) termed MIL-53-muc. MIL-53-muc is isostructural to the prototypical aluminium terephthalate (Al-MIL-53-BDC) and is therefore built from chains of trans corner-sharing AlO4(OH)2 octahedra connected by muconate linkers to a microporous network with lozenge-shaped one-dimensional pores. Featuring a high BET specific surface area of 1750 m2 g−1, a type V (S-shaped) stepwise methanol adsorption isotherm in a 0.05–0.15 relative pressure range, a high methanol uptake capacity of about 0.5 g g−1 and methanol stability of over 50 assessed ad/desorption cycles, MIL-53-muc is revealed as a promising adsorbent applicable for adsorption-based heat transformation applications. The performance evaluation indicates that high coefficient of performance COPH values above 1.5 could be reached for an evaporator operating at a temperature as low as −5 °C under heat pump conditions, while very low temperatures down to −10 °C could be achieved for refrigeration/ice making with COPC values of up to 0.73 under cooling conditions. This makes MIL-53-muc/methanol outperform most other working pairs for adsorption-based cooling and heating applications under sub-zero temperature conditions. Furthermore, MIL-53-muc is hydrothermally stable and presents a favorable water sorption profile making this material also suitable for autonomous indoor humidity control applications.

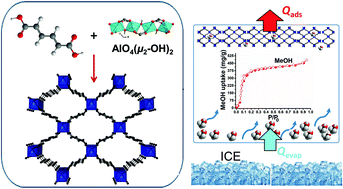

Graphical abstract: Designing a new aluminium muconate metal–organic framework (MIL-53-muc) as a methanol adsorbent for sub-zero temperature heat transformation applications

Back to tab navigation

Supplementary files

Publication details

The article was received on 10 Jul 2019, accepted on 01 Oct 2019 and first published on 04 Oct 2019


Article type: Paper
DOI: 10.1039/C9TA07465A
J. Mater. Chem. A, 2019, Advance Article

  •   Request permissions

    Designing a new aluminium muconate metal–organic framework (MIL-53-muc) as a methanol adsorbent for sub-zero temperature heat transformation applications

    T. J. Matemb Ma Ntep, H. Reinsch, P. P. C. Hügenell, S. Ernst, E. Hastürk and C. Janiak, J. Mater. Chem. A, 2019, Advance Article , DOI: 10.1039/C9TA07465A
