Jump to main content
Jump to site search


Chemo-mechanical degradation in V2O5 thin film cathodes of Li-ion batteries during electrochemical cycling

Author affiliations

Abstract

We have devised an approach to fabricate dense textured V2O5 thin films, which allows us to scrutinize the root cause of capacity fade in V2O5 cathodes of Li-ion batteries. Specifically, we performed in situ measurements of stress of V2O5 thin films during 50 electrochemical cycles. Surprisingly, electrochemical cycling appears to induce elastic and rate-independent deformation over a voltage range relevant to battery operation (4–2.8 V). However, the compressive stresses gradually increase with cycle number during the first few cycles, likely due to side reactions and/or residual Li left in the V2O5, even after delithiation (to 4 V). Further cycling leads to accumulated mechanical damage (e.g., fracture, delamination) and structural damage (e.g., amorphization), which ultimately result in severe capacity fade.

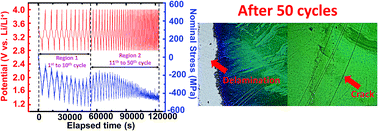

Graphical abstract: Chemo-mechanical degradation in V2O5 thin film cathodes of Li-ion batteries during electrochemical cycling

Back to tab navigation

Supplementary files

Publication details

The article was received on 17 May 2019, accepted on 09 Jul 2019 and first published on 15 Jul 2019


Article type: Paper
DOI: 10.1039/C9TA05243G
J. Mater. Chem. A, 2019, Advance Article

  •   Request permissions

    Chemo-mechanical degradation in V2O5 thin film cathodes of Li-ion batteries during electrochemical cycling

    Y. Zhang, Y. Luo, C. Fincher, S. Banerjee and M. Pharr, J. Mater. Chem. A, 2019, Advance Article , DOI: 10.1039/C9TA05243G

Search articles by author

Spotlight

Advertisements
