In operando monitoring of reaction-diffusion streamlines and uncovering of electrochemo-structural interactions in electrodes

Author affiliations

Abstract

An open question for interpretation of impedance spectra of electrochemical cells is how to decouple the electrochemo-structural interactions. Reduced-dimensional models, such as equivalent circuits, face challenges in capturing the impacts of inhomogeneities (e.g. roughness and constriction effects) in three-dimensional microstructures, where mean-field assumption breaks down. Here we report a new method to analyze the impedance spectra of the reaction-diffusion process in an electrode based on a distribution of reaction-diffusion streamlines (DRDS) connected parallelly with different lengths (representing the roughness effects) and shapes (representing the constriction effects). Demonstrations on (La,Sr)(Co,Fe)O3−δ electrodes show that the DRDS method can explicitly capture the geometric inhomogeneities and the multiple rate-determining steps in the multi-scale features of the electrode microstructure. Furthermore, the kinetic parameters for the reaction-diffusion process can be extracted accurately from the DRDS analysis, and ‘direct three-phase-boundary reactions’, a well-known open hypothesis in solid oxide cells, are monitored clearly by using the DRDS pattern. This method is generally applicable to many electrochemical systems involving a reaction-diffusion process in the electrode.

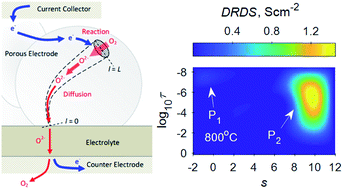

Graphical abstract: In operando monitoring of reaction-diffusion streamlines and uncovering of electrochemo-structural interactions in electrodes

Back to tab navigation

Supplementary files

Publication details

The article was received on 17 Feb 2019, accepted on 29 Mar 2019 and first published on 01 Apr 2019


Article type: Paper
DOI: 10.1039/C9TA01784D
Citation: J. Mater. Chem. A, 2019,7, 10256-10263

  •   Request permissions

    In operando monitoring of reaction-diffusion streamlines and uncovering of electrochemo-structural interactions in electrodes

    Y. Zhang, F. Yan, J. Ma, M. Yan, M. Ni and C. Xia, J. Mater. Chem. A, 2019, 7, 10256
    DOI: 10.1039/C9TA01784D
