Dual-source evaporation of silver bismuth iodide films for planar junction solar cells

Author affiliations

Abstract

Non-toxic and air-stable silver bismuth iodide semiconductors are promising light absorber candidates for photovoltaic applications owing to a suitable band gap for multi- or single-junction solar cells. Recently, solution-based film fabrication approaches for several silver bismuth iodide stoichiometries have been investigated. The current work reports on a facile and reproducible two-step coevaporation/annealing approach to deposit compact and pinhole-free films of AgBi2I7, AgBiI4 and Ag2BiI5. X-ray diffraction (XRD) in combination with scanning electron microscopy (SEM)/energy-dispersive X-ray spectroscopy (EDX) analysis reveals formation of pure cubic (Fd[3 with combining macron]m) phase AgBi2I7, cubic (Fd[3 with combining macron]m) or rhombohedra (R[3 with combining macron]m) phase AgBiI4, each with >3 μm average grain size, or the rhombohedral phase (R[3 with combining macron]m) Ag2BiI5 with >200 nm average grain size. A phase transition from rhombohedral to cubic structure is investigated via temperature-dependent X-ray diffraction (TD-XRD). Planar-junction photovoltaic (PV) devices are prepared based on the coevaporated rhombohedral AgBiI4 films, with titanium dioxide (TiO2) and poly(3-hexylthiophene) (P3HT) as electron- and hole-transport layers, respectively. The best-performing device exhibited a power conversion efficiency (PCE) of as high as 0.9% with open-circuit voltage (VOC) > 0.8 V in the reverse scan direction (with significant hysteresis).

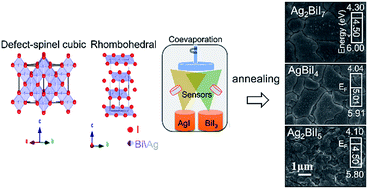

Graphical abstract: Dual-source evaporation of silver bismuth iodide films for planar junction solar cells

Back to tab navigation

Supplementary files

Publication details

The article was received on 06 Sep 2018, accepted on 27 Dec 2018 and first published on 28 Dec 2018


Article type: Paper
DOI: 10.1039/C8TA08679F
Citation: J. Mater. Chem. A, 2019, Advance Article
  •   Request permissions

    Dual-source evaporation of silver bismuth iodide films for planar junction solar cells

    M. Khazaee, K. Sardashti, C. Chung, J. Sun, H. Zhou, E. Bergmann, W. A. Dunlap-Shohl, Q. Han, I. G. Hill, Jacob L. Jones, D. C. Lupascu and D. B. Mitzi, J. Mater. Chem. A, 2019, Advance Article , DOI: 10.1039/C8TA08679F
