Jump to main content
Jump to site search
PLANNED MAINTENANCE Close the message box

Scheduled maintenance work on Wednesday 27th March 2019 from 11:00 AM to 1:00 PM (GMT).

During this time our website performance may be temporarily affected. We apologise for any inconvenience this might cause and thank you for your patience.


Issue 3, 2019
Previous Article Next Article

Enhanced thermoelectric properties of polycrystalline BiCuSeO via dual-doping in Bi sites

Author affiliations

Abstract

The effect of Pb and La substitution on the thermoelectric properties of BiCuSeO oxyselenide has been studied. It is revealed that Pb doping can significantly improve the electrical conductivity due to the increased carrier concentration, which results in a large power factor in the range of 700 to 800 μW m−1 K−2 at 873 K. In particular, the electrical transport properties can be further improved obviously over the entire measured temperature range after replacing some Bi3+ ions with La3+ ions in Bi0.94Pb0.06CuSeO. The electrical conductivity has increased from 408 S cm−1 for Bi0.94Pb0.06CuSeO to 594 S cm−1 for Bi0.93Pb0.06La0.01CuSeO at 327 K due to the increased carrier mobility. Combining with the moderate Seebeck coefficient which is over 124 μV K−1, the power factor has been significantly improved. An optimal value of 1059 μW m−1 K−2 at around room temperature is achieved for Bi0.93Pb0.06La0.01CuSeO and is much higher than most reported values. Additionally, the increased total thermal conductivity for the Pb-doped sample compared with the pristine sample has been suppressed after further doping the La element in Bi0.94Pb0.06CuSeO. Therefore, a maximum ZT value of nearly 0.90 at 873 K for the sample Bi0.92La0.02Pb0.06CuSeO has been finally obtained, which is ∼36% and ∼16% higher as compared with those of the La-free sample Bi0.94Pb0.06CuSeO and the reported Pb-free sample Bi0.92La0.08CuSeO.

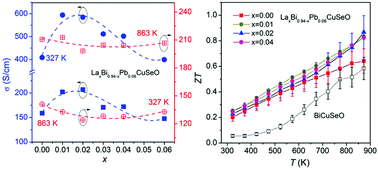

Graphical abstract: Enhanced thermoelectric properties of polycrystalline BiCuSeO via dual-doping in Bi sites

Back to tab navigation

Publication details

The article was received on 25 Dec 2018, accepted on 10 Feb 2019 and first published on 11 Feb 2019


Article type: Research Article
DOI: 10.1039/C8QI01402G
Citation: Inorg. Chem. Front., 2019,6, 799-807

  •   Request permissions

    Enhanced thermoelectric properties of polycrystalline BiCuSeO via dual-doping in Bi sites

    F. Li, M. Ruan, Y. Chen, W. Wang, J. Luo, Z. Zheng and P. Fan, Inorg. Chem. Front., 2019, 6, 799
    DOI: 10.1039/C8QI01402G

Search articles by author

Spotlight

Advertisements
