High Field Antiferroelectric-like Dielectric of Ploy(vinylidene fluoride-co-trifluoroethylene-co-chlorotrifluoroethylene)-graft-Poly(styrene-methyl methacrylate) for High Pulse Capacitors with High Energy Density and Low Loss

Abstract

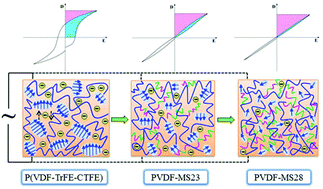

Dielectric polymer film capacitors with high energy density and low energy loss are highly desirable in the compact electronic devices and high power density electric systems. To overcome the high dielectric loss of poly(vinylidene fluoride) based ferroelectric polymers, in this work, a series of antiferr oelectric-like poly(vinylidene fluoride-co-trifluoroethylene-co-chlorotrifluoroethylene)-graft-ploy(styrene-methyl methacrylate) (PVDF-MS) copolymers were successfully synthesized using atom transfer radical polymerization procedure. The merits including the excellent miscibility of PMMA with both PSt and PVDF, and the promising insulating performance of PSt segments are finely combined in the resultant copolymers. The introduction of increased P(St-MMA) (MS) side chains lead to the significantly enhanced energy density, low conduction loss and energy loss comparing with the pristine P(VDF-TrFE-CTFE). The highest energy density of 17 J/cm3 and discharged efficiency of 87% at 600 MV/m are achieved in the sample containing 28 wt% MS. The excellent dielectric and capacitive properties of the grafted copolymers offer a strategy for the synthesis of high dielectric polymer dielectrics with promising energy storage properties.

Back to tab navigation

Supplementary files

Publication details

The article was received on 12 Apr 2019, accepted on 14 May 2019 and first published on 15 May 2019


Article type: Paper
DOI: 10.1039/C9PY00540D
Polym. Chem., 2019, Accepted Manuscript

  •   Request permissions

    High Field Antiferroelectric-like Dielectric of Ploy(vinylidene fluoride-co-trifluoroethylene-co-chlorotrifluoroethylene)-graft-Poly(styrene-methyl methacrylate) for High Pulse Capacitors with High Energy Density and Low Loss

    J. Liu, J. Liao, Y. Liao and Z. Zhang, Polym. Chem., 2019, Accepted Manuscript , DOI: 10.1039/C9PY00540D
