Magnetic Glyconanoparticles for Selective Lectin Separation and Purification

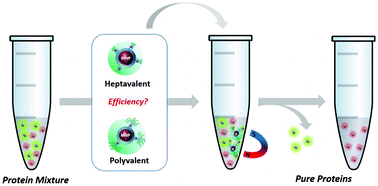

A modular platform for separation and purification of lectins using polymer coated iron oxide nanoparticles is developed. Supramolecular host-guest interactions based on an adamantane beta-cyclodextrin (β-CD) dyad are utilized to modify the polymeric interface. Poly(ethylene glycol) based hydrophilic polymer-coated magnetic iron oxide nanoparticles are fabricated using reversible addition-fragmentation chain transfer polymerization, followed by their chain-end modification to install adamantane groups on the nanoparticle surface. These adamantyl containing nanoparticles could be surface modified using β-CDs appended with appropriate ligands for intended applications. In this study, we exploit this supramolecular system for the purpose of separation and purification of lectins. Therefore, a polymer-coated magnetic nanoparticle interface was decorated with two types of mannose-containing β-CD constructs, a monodisperse heptamannose conjugated CD and a CD-based 7-arm star shaped glycopolymer for selective binding towards the Concanavalin A (ConA) lectin. The monodisperse and polydisperse CD derivatives were compared in terms of their efficiency for binding to ConA. It was demonstrated that the polymeric CD construct significantly improved the binding of magnetic nanoparticles and provided an effective system for separation and purification of ConA from a mixture of ConA and Peanut Agglutinin (PNA). Moreover, the surface bound isolated protein could be simply regenerated by addition of competitive ligands such as mannose. Specificity to bind a particular lectin can be tailored by choosing appropriate suragr based ligand, as demonstrated by specific capture of PNA using a galactose-containg polymer. The modular nature of functionalization of the nanoparticle interface that is tunable by host-guest chemistry affords a universal system that can be easily tailored for purification of specific proteins from mixtures.

Back to tab navigation

Supplementary files

Publication details

The article was received on 09 Dec 2018, accepted on 10 May 2019 and first published on 10 May 2019

Article type: Paper
DOI: 10.1039/C8PY01748D
Polym. Chem., 2019, Accepted Manuscript

  •   Request permissions

    Magnetic Glyconanoparticles for Selective Lectin Separation and Purification

    Y. Oz, Y. Abdouni, G. Yilmaz, C. R. Becer and A. Sanyal, Polym. Chem., 2019, Accepted Manuscript , DOI: 10.1039/C8PY01748D
