Monitoring morphology evolution within block copolymer microparticles during dispersion polymerisation in supercritical carbon dioxide: a high pressure SAXS study

Author affiliations

Abstract

Reversible addition–fragmentation chain transfer (RAFT) dispersion polymerisation in supercritical carbon dioxide is an effective process for creating block copolymer microparticles with internal nanostructures. Here we report an alternative synthesis route involving completely independent steps by exploiting the livingness of RAFT-terminated PMMA microparticles and their unique ability to be redispersed in scCO2. This not only enables a series of block copolymers to be created from a single RAFT dispersion synthesised PMMA homopolymer batch, thus improving reproducibility, but also adds flexibility by allowing the time and concentration requirements for each stage to be decoupled. The internal morphology development and evolution for a series of poly(methyl methacrylate-block-styrene) (PMMA-b-PS) block copolymer microparticles synthesised via this route was monitored via in situ small-angle X-ray scattering (SAXS) using an autoclave with diamond windows. Together with offline kinetics experiments and post-mortem transmission electron microscopy imaging, this study provides remarkably detailed insights into block copolymer self-organisation phenomena in scCO2. Specifically, the time period over which this block copolymer undergoes phase separation before progressing from an arrangement of spheres to lamellae via the hexagonal cylinder phase is elucidated, and the data are used to plot a detailed empirical phase diagram for this block copolymer system in scCO2.

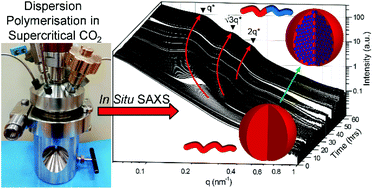

Graphical abstract: Monitoring morphology evolution within block copolymer microparticles during dispersion polymerisation in supercritical carbon dioxide: a high pressure SAXS study

Back to tab navigation

Supplementary files

Publication details

The article was received on 06 Nov 2018, accepted on 21 Dec 2018 and first published on 31 Dec 2018


Article type: Paper
DOI: 10.1039/C8PY01578C
Citation: Polym. Chem., 2019, Advance Article
  •   Request permissions

    Monitoring morphology evolution within block copolymer microparticles during dispersion polymerisation in supercritical carbon dioxide: a high pressure SAXS study

    M. Alauhdin, T. M. Bennett, G. He, S. P. Bassett, G. Portale, W. Bras, D. Hermida-Merino and S. M. Howdle, Polym. Chem., 2019, Advance Article , DOI: 10.1039/C8PY01578C
