Three-state switching in a double-pole change-over nanoswitch controlled by redox-dependent self-sorting

Author affiliations

Abstract

The four-arm nanomechanical switch 1 with four different terminals exhibits two switching arms (contacts A and D) and two distinct stations for binding (contacts B and C). In switching State I, the azaterpyridine arm is intramolecularly coordinated to a zinc(II) porphyrin station (connection A ↔ B) while contact D (a ferrocenylbipyridine unit) and contact C (phenanthroline) remain disconnected. After addition of copper(I) ions (State II) both connections A ↔ B and C ↔ D are established. Upon one-electron oxidation, double-pole change-over switching cleaves both connections A ↔ B & C ↔ D and establishes the new connection A ↔ C (State III). Fully reversible three-state switching (State I → State II → State III → State II → State I) was achieved by adding appropriate chemical and redox stimuli.

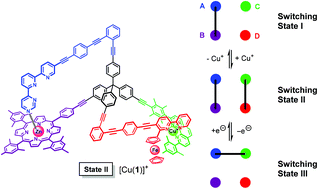

Graphical abstract: Three-state switching in a double-pole change-over nanoswitch controlled by redox-dependent self-sorting

Back to tab navigation

Supplementary files

Publication details

The article was received on 28 Jun 2019, accepted on 07 Aug 2019 and first published on 13 Aug 2019


Article type: Paper
DOI: 10.1039/C9OB01456J
Org. Biomol. Chem., 2019, Advance Article
  • Open access: Creative Commons BY-NC license
  •   Request permissions

    Three-state switching in a double-pole change-over nanoswitch controlled by redox-dependent self-sorting

    S. Gaikwad, M. S. Özer, S. Pramanik and M. Schmittel, Org. Biomol. Chem., 2019, Advance Article , DOI: 10.1039/C9OB01456J
