Capillary-driven elastic attraction between quantum dots

Author affiliations


We present a novel self-assembly route to align SiGe quantum dots. By a combination of theoretical analyses and experimental investigation, we show that epitaxial SiGe quantum dots can cluster in ordered closely packed assemblies, revealing an attractive phenomenon. We compute nucleation energy barriers, accounting for elastic effects between quantum dots through both elastic energy and strain-dependent surface energy. If the former is mostly repulsive, we show that the decrease in the surface energy close to an existing island reduces the nucleation barrier. It subsequently increases the probability of nucleation close to an existing island, and turns out to be equivalent to an effective attraction between dots. We show by Monte-Carlo simulations that this effect describes well the experimental results, revealing a new mechanism ruling self-organisation of quantum dots. Such a generic process could be observed in various heterogeneous systems and could pave the way for a wide range of applications.

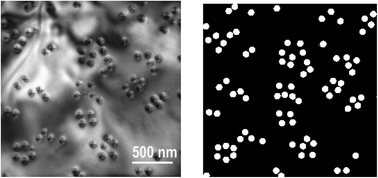

Graphical abstract: Capillary-driven elastic attraction between quantum dots

Back to tab navigation

Publication details

The article was received on 08 Jan 2019, accepted on 07 Mar 2019 and first published on 14 Mar 2019

Article type: Paper
DOI: 10.1039/C9NR00238C
Citation: Nanoscale, 2019,11, 7798-7804

  •   Request permissions

    Capillary-driven elastic attraction between quantum dots

    K. Liu, I. Berbezier, L. Favre, A. Ronda, M. Abbarchi, P. Donnadieu, P. W. Voorhees and J. Aqua, Nanoscale, 2019, 11, 7798
    DOI: 10.1039/C9NR00238C
