Multifunctional WS2&M-AgNPs superhydrophobic conductive sponges for application in various sensors

Author affiliations

Abstract

Fabricating conductive materials based on sponges is applicable to many fields due to their outstanding performance. However, superhydrophobic conductive sponges are not only easily damaged by water but also have a complicated production process, which severely limit their working conditions and large-scale preparation. In this work, conductive sponges involving multiple superior characteristics of superhydrophobicity, excellent electrical conductivity, thermo-stability, and mechanical and chemical durability are fabricated based on WS2 nanosheets and modified Ag nanoparticles (M-AgNPs) via a one-step method. More importantly, when immersed in water, the resistance of the WS2&M-AgNPs superhydrophobic conductive sponge remained unchanged which is beneficial for adaptations in working conditions. In addition, in order to ensure the normal use of various sensors in the natural environment, WS2&M-AgNPs conductive sponges possessed the important ability of thermo-stability and the resistance had little change in the temperature range 0 °C to 40 °C. Even after suffering 2400 compressions, the superhydrophobic sponges recovered their original shape and retained outstanding hydrophobicity, which highly prolonged the lifetime of the pedometer. The conductive sponges retained excellent hydrophobicity in the pH range 1 to 14. It was noted that the superhydrophobic conductive sponges showed a linear relationship between resistance and compressed distance. According to this linear relation, a pressure sensor fabricated using this sponge can measure multiple parameters such as weight and depth of water. Herein, a simple preparation method is provided to fabricate superhydrophobic conductive sponges, which expands the working conditions and may be a breakthrough for traditional sensor preparation.

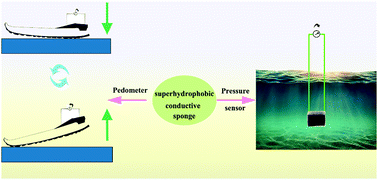

Graphical abstract: Multifunctional WS2&M-AgNPs superhydrophobic conductive sponges for application in various sensors

Back to tab navigation

Supplementary files

Publication details

The article was received on 11 Jan 2019, accepted on 07 Mar 2019 and first published on 08 Mar 2019


Article type: Paper
DOI: 10.1039/C9NJ00167K
New J. Chem., 2019,43, 5287-5296

  •   Request permissions

    Multifunctional WS2&M-AgNPs superhydrophobic conductive sponges for application in various sensors

    X. Jing and Z. Guo, New J. Chem., 2019, 43, 5287
    DOI: 10.1039/C9NJ00167K
