Assembly of metal–organic frameworks based on 4-connected 3,3′,5,5′-azobenzenetetracarboxylic acid: structures, magnetic properties, and sensing of Fe3+ ions

Author affiliations

Abstract

Three metal–organic frameworks, {[Co2(ao0.34btc)(DMF)3]·3DMF}n (1), {(Me2NH2)2[Mn12(OH)4(abtc)6(DMA)6(H2O)6][Mn(H2O)4]·36H2O}n (2), and {[Zn3(abtc)1.5(H2O)2.5(DMA)0.5]·5DMA·2CH3OH}n (3), were successfully designed and synthesized by using H4abtc ligand under solvothermal conditions (H4abtc = 3,3′,5,5′-azobenzenetetracarboxylic acid, DMF = N,N-dimethyformamide, and DMA = N,N-dimethylacetamide). In complex 1, the ao0.34btc4− ligands connect [Co2(CO2)4] second building units (SBUs) to generate a three-dimensional (3D) crystal structure, showing the “PtS”-type topology. The [Mn3OH(CO2)6] SBUs connected by abtc4− produce the 3D “soc”-type cage in complex 2. Complex 3 consists of two categories of [Zn2(CO2)4] SBUs, resulting in the “NbO”-type cage with the assistance of the abtc4− ligands. Magnetic measurements reveal that antiferromagnetic exchange interactions exist in complexes 1 and 2. Besides, the luminescence investigations of complex 3 show its excellent sensing ability toward Fe3+ ions by fluorescence quenching.

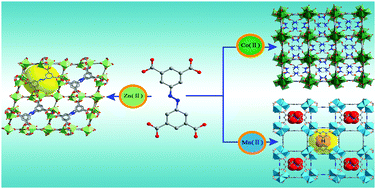

Graphical abstract: Assembly of metal–organic frameworks based on 4-connected 3,3′,5,5′-azobenzenetetracarboxylic acid: structures, magnetic properties, and sensing of Fe3+ ions

Back to tab navigation

Supplementary files

Publication details

The article was received on 10 Oct 2018, accepted on 05 Feb 2019 and first published on 07 Feb 2019


Article type: Paper
DOI: 10.1039/C8NJ05139A
Citation: New J. Chem., 2019, Advance Article

  •   Request permissions

    Assembly of metal–organic frameworks based on 4-connected 3,3′,5,5′-azobenzenetetracarboxylic acid: structures, magnetic properties, and sensing of Fe3+ ions

    M. Di, J. Shen, Z. Cui, X. Zhang and J. Zhang, New J. Chem., 2019, Advance Article , DOI: 10.1039/C8NJ05139A
