Drilling by light: ice-templated photo-patterning enabled by a dynamically crosslinked hydrogel

Author affiliations

Abstract

Dynamic covalent polymer networks exhibit a unique stress relaxation behavior under mechanical deformation, which enables sophisticated shape manipulation in addition to their widely recognized capabilities of self-healing and thermoset recycling. Here we present an unusual ice-templated photo-patterning technique employing a disulfide-crosslinked hydrogel capable of photo-induced network rearrangement. First, freezing creates internal mechanical stress since the resulting ice crystals squeeze the polymer chains. Secondly, spatio-temporal UV light irradiation at this frozen state leads to localized stress relaxation via disulfide bond exchange. At the last step, subsequent ice melting leads to pore patterns, the porosity of which can be controlled by the light dosage. Taking advantage of the stimuli-responsiveness of the hydrogel, one single patterned sample is used as an adaptive stamp to produce multiple functional devices (e.g. antenna).

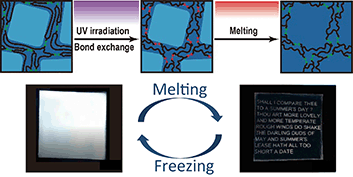

Graphical abstract: Drilling by light: ice-templated photo-patterning enabled by a dynamically crosslinked hydrogel

Back to tab navigation

Supplementary files

Publication details

The article was received on 17 Jan 2019, accepted on 30 Jan 2019 and first published on 30 Jan 2019


Article type: Communication
DOI: 10.1039/C9MH00090A
Citation: Mater. Horiz., 2019, Advance Article

  •   Request permissions

    Drilling by light: ice-templated photo-patterning enabled by a dynamically crosslinked hydrogel

    D. Chen, Y. Zhang, C. Ni, C. Ma, J. Yin, H. Bai, Y. Luo, F. Huang, T. Xie and Q. Zhao, Mater. Horiz., 2019, Advance Article , DOI: 10.1039/C9MH00090A
