Nianzuo Yu, Yongshun Liu, Shuli Wang, Xiaoduo Tang, Peng Ge, Jingjie Nan, Junhu Zhang and Bai Yang
Lab Chip, 2019,19, 3368-3374
DOI:
10.1039/C9LC00730J,
Communication

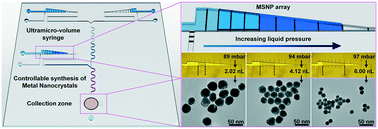

Ultramicro-volume syringes were fabricated by integrating micro-nanostructure arrays in microchannels for quantitatively dispensing sub-picoliter volumes of liquids. Using this system, liquids were dispensed in volume increments as low as 0.5 pL with 96% accuracy. Specifically, the controllable synthesis of nanocrystals was achieved using a lab-on-chip platform that was integrated with the syringes.
