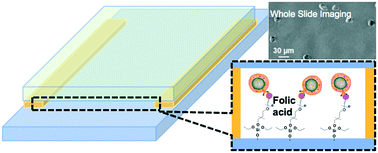

Whole Slide Imaging of Circulating Tumor Cells Captured on Capillary Microchannel Device


Liquid biopsy with circulating tumor cells (CTCs) can aid in cancer detection at early stage and determine whether a certain treatment is effective or not. However, existing CTC techniques focus on one or two aspects of CTC management including sampling, enrichment, enumeration, and treatment selection. This paper reports an integrated capillary microchannel device that allows efficient capturing of CTCs with a wide microchannel, rapid enumeration of captured CTCs with whole slide cell imaging, and in situ drug testing with captured CTCs. Blood is drawn into the microchannel, whose height is appropriate to the diameter of cancer cells, while its width is thousand times larger than the diameter of cancer cell. The inner bottom surface of microchannel is modified with long chain polymers that have cell-adhesive ends to efficiently capture CTCs from blood. With this design, cells including CTCs are forced to move through the polymer coated microchannel; the chance of cell adhesive ends to interact with specific antigens over-expressed on surface of cancer cells is significantly enhanced without channel blockage issue. The captured CTCs are enumerated with a whole slide imaging platform via dual LED autofocusing technology, and then exposed to anti-cancer drugs, followed by live-dead assay and fluorescent imaging. Given its straight forward, easy operation, and powerless operation, this device with whole slide imaging will be useful for cancer diagnosis, prognosis and treatment at points-of-care.

Back to tab navigation

Publication details

The article was received on 29 Apr 2019, accepted on 28 Sep 2019 and first published on 11 Oct 2019

Article type: Communication
DOI: 10.1039/C9LC00412B
Lab Chip, 2019, Accepted Manuscript

  •   Request permissions

    Whole Slide Imaging of Circulating Tumor Cells Captured on Capillary Microchannel Device

    Y. Zheng, Q. Li, W. Hu, J. Liao, G. Zheng and M. Su, Lab Chip, 2019, Accepted Manuscript , DOI: 10.1039/C9LC00412B
