Synthesis and structural characterization of homochiral coordination polymers with imidazole-based monocarboxylate ligands

Abstract

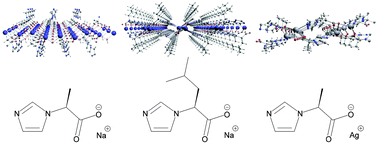

Chiral Na[(S)-LR] (R = Me, 1a; iPr, 1b; CH2iPr, 1c, and (S)-secBu, 1d) and Na[(R) LR] (R = Me, 1a’) compounds were synthesised following standard procedures. New compounds 1d and 1a’ were analytical and spectroscopically characterised. 1a and 1c were structurally identified by single-crystal X ray diffraction methods as homochiral 2D coordination polymers {Na(H2O)[(S)-LMe]}n and {Na[(S)-LCH2iPr]}n, respectively. Both (S) 2alkyl,2-(1H-imidazol-1-yl)acetate anions displayed unprecedented coordination modes in these coordination polymers: 32OO’ for 1a and 42O2O’ for 1c. Enantiomeric species 1a’, {Na(H2O)[(R)-LMe]}n, showed the same X ray powder diffractogram (XRPD) that 1a, in agreement with a similar crystal structure. DFT calculations on the [LR]- anions confirmed their coordination capabilities as ditopic linkers. In fact, the reaction of Na[LR] with several metal salts yielded the following coordination polymers: {Ag[(S)-LMe]}n, 2a, {Ag[(R)-LMe]}n, 2a’, {Cu[(S)-LR]2}n (R = Me, 3a; iPr, 3b), {Cu[(R)-LMe]}n, 3a’, {Zn[(S)-LR]2}n (R = Me, 4a; iPr, 4b; (S)-secBu, 4d) and {Zn[(R)-LMe]2}n, 4a’. For known 3a and 4a, this procedure is a new synthetic route that avoided high temperature reaction conditions. New complexes 2, 3a’,b, and 4a’,b,d were characterised by elemental analysis, infrared, XRPD methods and single-crystal X-ray for 2a. This complex is also a two-dimensional coordination polymer in which the [(S) LMe]- anion acts as µ4N,2O,2O’ bridging ligand. Compounds 1-4a’ are the first examples of homochiral coordination polymers with imidazole-monocarboxylate ligands based on non-natural amino acids. Preliminary studies in the metal-catalysed preparation of chiral α aminophosphonates were carried out but, unfortunately, no enantioselectivity was observed.

Back to tab navigation

Supplementary files

Publication details

The article was received on 22 Mar 2019, accepted on 15 May 2019 and first published on 15 May 2019


Article type: Paper
DOI: 10.1039/C9DT01237K
Dalton Trans., 2019, Accepted Manuscript

  •   Request permissions

    Synthesis and structural characterization of homochiral coordination polymers with imidazole-based monocarboxylate ligands

    E. Borrego-Blanco, A. I. Nicasio, E. Alvarez González, F. Montilla, J. M. Córdoba and A. Galindo, Dalton Trans., 2019, Accepted Manuscript , DOI: 10.1039/C9DT01237K
