Carbon-reduction as easy route for the synthesis of VO2 (M1) and further Al, Ti doping

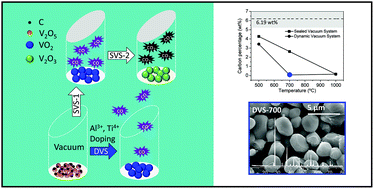

A low-cost and facile method to synthesize highly crystallized VO2 (M1) particles is proposed, using carbon black as reducing agent mixed with V2O5 nanopowders comparing two types of vacuum systems for the thermal activation. In sealed vacuum system, CO gas is generated in the first reductive step, and continue to reduce the new born VO2, until all the V (4+) are reduced to V (3+), resulting in V2O3 formation at 1000°C. On the contrary, in dynamic vacuum system, CO gas is ejected through pumping as soon as it is generated, leading to the formation of pure VO2 (M1) at high temperatures (i.e. in the range 700°C ≤ T ≤ 1000°C). The evolution of the carbon content, determined by CHNS, of each sample versus the synthesis conditions, namely temperature and type of vacuum system, confirms that the transformation of V (5+) to V (4+) or V (3+) can be controlled. The characterization of the morphologies and crystal structures of two synthesized VO2 (M1) at 700°C and 1000°C shows the possibility to tune the crystallite size from 1.8 to more than 5 µm, with a uniform size distribution and highly crystallized powders. High purity VO2 (M1) leads to strong physical properties illustrated by a high latent energy (~55 J/g) during the phase transition obtained from DSC as well as high resistivity changes. In addition, with this method, dopants such as Ti4+ or Al3+ can be successfully introduced into VO2 (M1) thanks to the preparation of Al or Ti-doped nano-V2O5 by co-precipitation in polyol medium before carbon-reduction.

Back to tab navigation

Supplementary files

Publication details

The article was received on 14 Dec 2018, accepted on 11 Feb 2019 and first published on 11 Feb 2019

Article type: Paper
DOI: 10.1039/C8DT04914A
Citation: Dalton Trans., 2019, Accepted Manuscript

  •   Request permissions

    Carbon-reduction as easy route for the synthesis of VO2 (M1) and further Al, Ti doping

    S. Guan, M. Gaudon, M. Souquet-Basiege, O. Viraphong, N. Penin and A. Rougier, Dalton Trans., 2019, Accepted Manuscript , DOI: 10.1039/C8DT04914A
