A new non-fullerene acceptor based on the combination of a heptacyclic benzothiadiazole unit and a thiophene-fused end group achieving over 13% efficiency

Author affiliations

Abstract

A new non-fullerene acceptor, namely Y10, based on dithienothiophen[3,2-b]-pyrrolobenzothiadiazole (TPBT) as the central core and 2-(6-oxo-5,6-dihydro-4H-cyclopenta[c]thiophen-4-ylidene)malononitrile (TC) as the electron-deficient end group, has been designed and synthesized. Y10 reveals a narrow optical energy gap (Eoptg) of 1.35 eV with a broad absorption band from 600 to 900 nm. A wide bandgap polymer, J11, as the donor material (Eoptg = 1.96 eV) is used to blend with Y10 for the construction of organic solar cell devices, which achieve an impressive power conversion efficiency (PCE) of 13.46% with an open circuit voltage (Voc) of 0.89 V, a short circuit current (Jsc) of 21.21 mA cm−2, and a fill factor (FF) of 71.55%, with thermal annealing treatment at 100 °C for 5 min and 0.8 wt% 1-chloronaphthalene (CN) as an additive. These results indicate that the incorporation of the TPBT unit as the central core and the TC unit as the electron-deficient end group provides an efficient strategy for the construction of high performance solar cells.

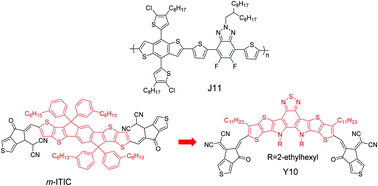

Graphical abstract: A new non-fullerene acceptor based on the combination of a heptacyclic benzothiadiazole unit and a thiophene-fused end group achieving over 13% efficiency

Back to tab navigation

Supplementary files

Publication details

The article was received on 11 Sep 2019, accepted on 15 Nov 2019 and first published on 29 Nov 2019


Article type: Paper
DOI: 10.1039/C9CP05015A
Phys. Chem. Chem. Phys., 2019, Advance Article

  •   Request permissions

    A new non-fullerene acceptor based on the combination of a heptacyclic benzothiadiazole unit and a thiophene-fused end group achieving over 13% efficiency

    Y. Zhang, F. Cai, J. Yuan, Q. Wei, L. Zhou, B. Qiu, Y. Hu, Y. Li, H. Peng and Y. Zou, Phys. Chem. Chem. Phys., 2019, Advance Article , DOI: 10.1039/C9CP05015A
