Solid–liquid interface optimization and properties of ultra-wide bandgap β-Ga2O3 grown by Czochralski and EFG methods

Abstract

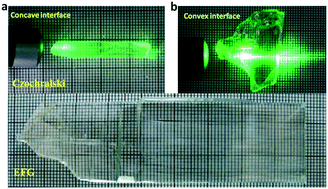

Herein, the solid–liquid interface and bulk crystal growth habit of β-Ga₂O₃ were studied during the Czochralski and the modified edge-defined film-fed growth (EFG) methods, respectively. The technical characteristics and process optimizations of the two methods were systematically compared and explored during the crystal growth of β-Ga₂O₃. In the Czochralski method, the phenomenon of spiral growth was explained based on a concave solid–liquid interface and heat transfer at high temperatures. To overcome the problem of spiral growth, a square Ir die was designed and used for the growth of β-Ga₂O₃ in the EFG method, and high quality β-Ga₂O₃ single crystals were obtained with a flat interface. The full-width at half-maximum (FWHM) of the X-ray rocking curve on the (100)-faced β-Ga₂O₃ grown by the EFG method was only 35.6 arcsec, indicating high crystalline quality. The carrier source of the unintentionally doped β-Ga₂O₃ was determined via impurity elemental analysis. A relationship between the carrier concentrations and mid-IR transmission was established. Furthermore, the PL and Raman spectra of the as-grown and annealed crystals were obtained to reveal the energy structure and stress in the crystal.
