A near-infrared C2H2/CH4 dual-gas sensor system combining off-axis integrated-cavity output spectroscopy and frequency-division-multiplexing-based wavelength modulation spectroscopy

Author affiliations

Abstract

By combining frequency division multiplexing assisted wavelength modulation spectroscopy (FDM-WMS) and off-axis integrated-cavity output spectroscopy (OA-ICOS), a near-infrared (near-IR) dual-gas sensor system was demonstrated for simultaneous chemical gas-phase detection of acetylene (C2H2) and methane (CH4). Two distributed feedback (DFB) lasers modulated at the frequency of 3 kHz and 4 kHz with an emitting wavelength of 1532 and 1653 nm were used to target two absorption lines, C2H2 at 6523.88 cm−1 and CH4 at 6046.95 cm−1, respectively. A 6 cm-long cavity was fabricated, which reveals an effective path length of 9.28 m (@1532 nm, C2H2) and 8.56 m (@1653 nm, CH4), respectively. Performances of the dual-gas sensor system were experimentally evaluated using C2H2 and CH4 samples generated by an Environics gas mixing system. An Allan deviation of 700 parts-per-billion in volume (ppbv) for C2H2 with an averaging time of 200 s and 850 ppbv for CH4 with an averaging time of 150 s was achieved for these two gas species. Dynamic measurements of a C2H2/CH4 : N2 mixture were performed for monitoring both C2H2 and CH4 simultaneously. This dual-gas sensor has the merits of reduced size and cost compared to two separate OA-ICOS sensors and reveals the minimum detectable column density (DCD) compared to other reported C2H2 and CH4 sensor systems.

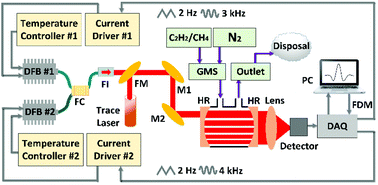

Graphical abstract: A near-infrared C2H2/CH4 dual-gas sensor system combining off-axis integrated-cavity output spectroscopy and frequency-division-multiplexing-based wavelength modulation spectroscopy

Back to tab navigation

Publication details

The article was received on 09 Nov 2018, accepted on 12 Jan 2019 and first published on 14 Jan 2019


Article type: Paper
DOI: 10.1039/C8AN02164C
Citation: Analyst, 2019, Advance Article

  •   Request permissions

    A near-infrared C2H2/CH4 dual-gas sensor system combining off-axis integrated-cavity output spectroscopy and frequency-division-multiplexing-based wavelength modulation spectroscopy

    K. Zheng, C. Zheng, D. Yao, L. Hu, Z. Liu, J. Li, Y. Zhang, Y. Wang and F. K. Tittel, Analyst, 2019, Advance Article , DOI: 10.1039/C8AN02164C
