Reactive block copolymers for patterned surface immobilization with sub-30 nm spacing

Author affiliations

Abstract

Phase-segregating block copolymers are powerful platforms for nanofabrication, particularly when employed as lithographic mask precursors. Surface-reactive polymeric films with distinct sub-30 nm domains are also proposed as covalent docking platforms for scalable, high-resolution molecular patterned immobilization. Here, the well-known self-assembling polystyrene-block-polyisoprene system is the starting point to produce a small library of derivatives with distinct reactive pendant groups (halide, azide, pentafluorophenylalkyl) by nitroxide-mediated radical polymerization. We find that controlling film thickness is crucial to obtain a perpendicular lamellar morphology and that the presence of the functional groups has a limited impact on self-assembly, yet may influence characteristic domain dimensions. Differential scanning calorimetry (DSC), small-angle X-ray scattering (SAXS), and atomic force microscopy (AFM) are utilized in concert to assess the phase behavior of the polymers and the surface features of the nanostructures. As a proof-of-concept for the surface reactivity, click chemistry-driven immobilization of a model water-soluble polymer is evidenced by X-ray photoelectron spectroscopy (XPS) and preservation of the underlying morphology is investigated by AFM.

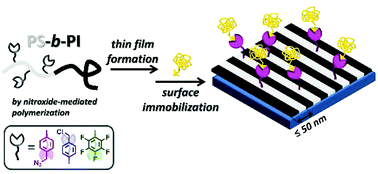

Graphical abstract: Reactive block copolymers for patterned surface immobilization with sub-30 nm spacing

Back to tab navigation

Supplementary files

Publication details

The article was received on 14 Dec 2018, accepted on 28 Jan 2019 and first published on 29 Jan 2019


Article type: Paper
DOI: 10.1039/C8PY01777H
Polym. Chem., 2019,10, 1344-1356
  • Open access: Creative Commons BY-NC license
  •   Request permissions

    Reactive block copolymers for patterned surface immobilization with sub-30 nm spacing

    H. Turgut, N. Dingenouts, V. Trouillet, P. Krolla-Sidenstein, H. Gliemann and G. Delaittre, Polym. Chem., 2019, 10, 1344
    DOI: 10.1039/C8PY01777H
