Integrating ultrathin and modified NiCoAl-layered double-hydroxide nanosheets with N-doped reduced graphene oxide for high-performance all-solid-state supercapacitors

Author affiliations

Abstract

As one class of important electroactive materials, layered double-hydroxide (LDH) nanostructures show great promise for application in the fields of electrocatalysis, secondary batteries, and supercapacitors. Nonetheless, the synthesis of ultrathin multi-metallic-based LDH nanosheets or related nanohybrids (NHs) remains a challenge, and their supercapacitive performances need to be further improved for achieving both high energy and high power densities. Herein, ultrathin and modified NiCoAl-LDH (m-LDH) nanosheets and N-doped reduced graphene oxide (NRG) NHs were synthesized by an alkaline etching of pre-synthesized ultrathin NiCoAl-LDH nanosheets, followed by electrostatic assembly with NRG. The alkaline etching could efficiently modulate the chemical states of the active Ni/Co elements and create more oxygen vacancies in the m-LDH nanosheets. After integrating m-LDH with NRG, the strong interaction or efficient electronic coupling of those two constituents further mediated the surface electronic structure of the m-LDH nanosheets, improving the interfacial charge transport and offering more available electrochemical active sites for surface faradaic reactions. Thus, the obtained m-LDH/NRG NHs manifested greatly enhanced specific capacitance (1877.0 F g−1 at 1 A g−1), which was superior to that of pure m-LDH and most other reported electrode materials. Moreover, using such NHs as the positive electrode and activated carbon as the negative electrode, a fabricated asymmetric all-solid-state supercapacitor device delivered a high energy density of 19.9 W h kg−1 at a power density of 319.8 W kg−1 together with good cycling stability (76.5% capacitance retention after over 5000 cycles). Remarkably, even at a power density up to 1637.5 W kg−1, it could still retain an energy density of 13.1 W h kg−1, superior to recently reported asymmetric supercapacitors devices based on Ni, Co, and other transition metal compounds.

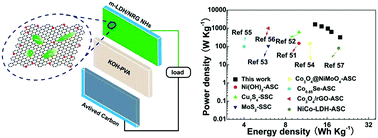

Graphical abstract: Integrating ultrathin and modified NiCoAl-layered double-hydroxide nanosheets with N-doped reduced graphene oxide for high-performance all-solid-state supercapacitors

  • This article is part of the themed collection: Nanocarbons
Back to tab navigation

Supplementary files

Publication details

The article was received on 18 Mar 2019, accepted on 26 Apr 2019 and first published on 26 Apr 2019


Article type: Paper
DOI: 10.1039/C9NR02357G
Nanoscale, 2019,11, 9896-9905

  •   Request permissions

    Integrating ultrathin and modified NiCoAl-layered double-hydroxide nanosheets with N-doped reduced graphene oxide for high-performance all-solid-state supercapacitors

    F. Liu, Y. Chen, Y. Liu, J. Bao, M. Han and Z. Dai, Nanoscale, 2019, 11, 9896
    DOI: 10.1039/C9NR02357G
