Construction of SnO2/Co3Sn2@C and SnO2/Co3Sn2@Air@C hierarchical heterostructures for efficient electromagnetic wave absorption

Abstract

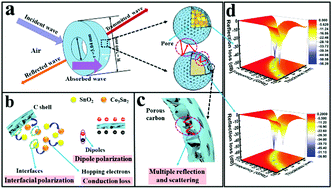

The multi-heterogeneous components and structural design are efficient strategies for enhancing the absorption of electromagnetic waves. In order to achieve stronger interface polarization and better impedance matching, two kinds of hierarchical heterostructures of SnO2/Co3Sn2@C and SnO2/Co3Sn2@Air@C were fabricated through an environment friendly approach and their electromagnetic absorption performance were investigated. It was demonstrated that both products are composed of binary core SnO2/Co3Sn2 and porous carbon shell. Particularly, one core is closely stacked in the form of numerous nanoparticles, while the other core assembles into a ball and an internal cavity exists between the core and shell. Benefiting from the synergistic effects of heterogeneous dielectric materials, abundant interfaces polarization and special porous structure, SnO2/Co3Sn2@C hybrid shows excellent microwave absorption performance with RL value of −56.2 dB at 6.8 GHz and the minimum effective absorption thickness of 1.7 mm corresponding to the RL value of −46.8 dB. In addition to strong absorption, SnO2/Co3Sn2@Air@C composite possesses superior broadband microwave absorption characteristics with an ultrabroad bandwidth up to 6.1 GHz (11.0-17.1 GHz) due to impedance matching mediators of the pore/void. This work opens up a fresh exploration of designing novel electromagnetic wave absorbing materials.

Back to tab navigation

Supplementary files

Publication details

The article was received on 03 Jul 2018, accepted on 06 Aug 2018 and first published on 07 Aug 2018


Article type: Paper
DOI: 10.1039/C8TC03260B
Citation: J. Mater. Chem. C, 2018, Accepted Manuscript
  •   Request permissions

    Construction of SnO2/Co3Sn2@C and SnO2/Co3Sn2@Air@C hierarchical heterostructures for efficient electromagnetic wave absorption

    S. Wang, S. Peng, S. Zhong and W. Jiang, J. Mater. Chem. C, 2018, Accepted Manuscript , DOI: 10.1039/C8TC03260B
