Hierarchical NiCo-LDH/NiCoP@NiMn-LDH Hybrid Electrodes on Carbon Cloth for Excellent Supercapacitors

Abstract

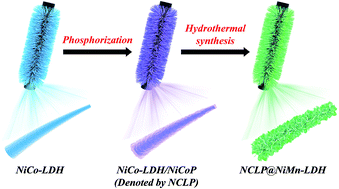

To realize high-performance and long life span of supercapacitors, highly electrochemical active materials and rational design of structure are highly desirable. Herein, the hierarchical NiCo-LDH/NiCoP@NiMn-LDH hybrid electrode (NCLP@NiMn-LDH) was synthesized on carbon cloth via hydrothermal reaction and phosphorization treatment. Owing to the import of NiCoP and design of core-shell structure, the hybrid electrode showed significantly improved electrochemical performance. The as-fabricated hybrid electrode exhibited a high specific capacitance of 2318 F g-1 at 1A g-1, with a superior cyclic stability. Additionally, an asymmetric supercapacitor (NCLP@NiMn-LDH//AC) was assembled with a voltage window of 1.5 V. The ASC device delivered a maximum energy density of 42.2 Wh kg-1 at a power density of 750 W kg-1.

Back to tab navigation

Supplementary files

Publication details

The article was received on 30 May 2018, accepted on 12 Jul 2018 and first published on 13 Jul 2018


Article type: Communication
DOI: 10.1039/C8TA05065A
Citation: J. Mater. Chem. A, 2018, Accepted Manuscript
  •   Request permissions

    Hierarchical NiCo-LDH/NiCoP@NiMn-LDH Hybrid Electrodes on Carbon Cloth for Excellent Supercapacitors

    H. Liang, J. H. Lin, H. N. Jia, S. L. Chen, J. Qi, J. Cao, T. Lin, J. C. Feng and W. Fei, J. Mater. Chem. A, 2018, Accepted Manuscript , DOI: 10.1039/C8TA05065A
