Zeolite framework functionalisation by tuneable incorporation of various metals into the IPC-2 zeolite

Author affiliations

Abstract

The incorporation of various metals into the zeolite framework creates opportunities for novel applications, especially in catalysis. The recently developed assembly-disassembly-organisation-reassembly (ADOR) strategy was used to prepare zeolites with IPC-2 (OKO) topology. The layered zeolite precursor (IPC-1P) was modified by incorporating various metals (Al, Zn, Sn, Zr, V, Fe, Hf, and Ti) using a stabilisation process. The resulting materials were characterised by X-ray powder diffraction (XRD), Ar adsorption, scanning electron microscopy (SEM), scanning transmission electron microscopy (STEM), inductively coupled plasma optical emission spectroscopy (ICP-OES), and diffuse reflectance UV-Vis spectroscopy (DR-UV-Vis). The acidity of Al-containing IPC-2 materials was assessed by acetonitrile and pyridine sorption followed by FT-IR spectroscopy, showing overall concentrations of acid sites of 0.863 mmol g−1 (acetonitrile) and 0.413 mmol g−1 (pyridine). Titanium containing IPC-2 was examined by selective oxidation of methylphenyl sulfide (MPS) to the corresponding sulfoxide (MPSO). Ti-IPC-2 provided a higher conversion than TS-1 after 60 min (30% and 18% respectively) and showed higher selectivity towards MPSO (77% and 63% respectively). Sn-IPC-2 was tested by Baeyer–Villiger oxidation of norcamphor with aqueous hydrogen peroxide, showing a 3.8% norcamphor conversion and a 1.3% yield of the desired lactone (after 8 h reaction). Therefore, the results reported herein clearly show the successful incorporation of metals into the IPC-2 zeolite framework.

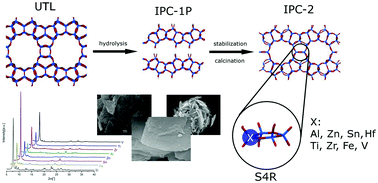

Graphical abstract: Zeolite framework functionalisation by tuneable incorporation of various metals into the IPC-2 zeolite

Back to tab navigation

Supplementary files

Publication details

The article was received on 20 Jul 2018, accepted on 25 Aug 2018 and first published on 27 Aug 2018


Article type: Research Article
DOI: 10.1039/C8QI00732B
Citation: Inorg. Chem. Front., 2018,5, 2746-2755

  •   Request permissions

    Zeolite framework functionalisation by tuneable incorporation of various metals into the IPC-2 zeolite

    M. Mazur, V. Kasneryk, J. Přech, F. Brivio, C. Ochoa-Hernández, A. Mayoral, M. Kubů and J. Čejka, Inorg. Chem. Front., 2018, 5, 2746
    DOI: 10.1039/C8QI00732B
