Issue 34, 2018
Previous Article Next Article

Stokes and anti-Stokes Raman scattering in mono- and bilayer graphene

Author affiliations

Abstract

Stokes and anti-Stokes Raman spectroscopy associated with the intervalley double resonance process in carbon materials is a unique technique to reveal the relationship between their characteristic electronic band structures and phonon dispersion. In graphene, the dominant resonant behavior for its 2D mode is an intervalley triple resonance Raman process. In this paper, we report the Stokes and anti-Stokes Raman scattering of the 2D mode in pristine graphene. The excitation energy (Eex)-dependent frequency discrepancy between anti-Stokes and Stokes components of the 2D mode (Δω(2D)) is observed, which is in good agreement with the theoretical results. This is attributed to the nonlinear dispersion of the in-plane transverse optical (iTO) phonon branch near the K point, confirmed by the nonlinear Eex-dependent frequency of the 2D mode (ω(2D)) in the range of 1.58–3.81 eV. The wavevector-dependent phonon group velocity of the iTO phonon branch is directly derived from Δω(2D). The Stokes and anti-Stokes Raman scattering of the D mode in defected graphene and the 2D mode in bilayer graphene associated with intervalley double resonance Raman processes is also reported.

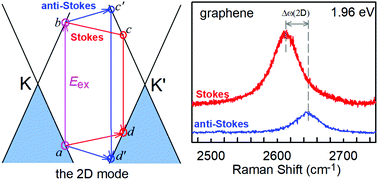

Graphical abstract: Stokes and anti-Stokes Raman scattering in mono- and bilayer graphene

Back to tab navigation

Publication details

The article was received on 05 Jun 2018, accepted on 27 Jul 2018 and first published on 30 Jul 2018


Article type: Paper
DOI: 10.1039/C8NR04554B
Citation: Nanoscale, 2018,10, 16138-16144
  •   Request permissions

    Stokes and anti-Stokes Raman scattering in mono- and bilayer graphene

    X. Cong, J. Wu, M. Lin, X. Liu, W. Shi, P. Venezuela and P. Tan, Nanoscale, 2018, 10, 16138
    DOI: 10.1039/C8NR04554B
