Seed-induced synthesis of multilamellar ZSM-5 nanosheets directed by amphiphilic organosilane

Author affiliations

Abstract

Multilamellar ZSM-5 nanosheets have been prepared using silicalite-1 as a seed in the presence of commercially available dimethyloctadecyl[3-(trimethoxysilyl)propyl]ammonium chloride (TPOAC). Characterization results show that these ZSM-5 nanosheets stack disorderly forming lamellar aggregates. Besides, there exists abundant interlayer space in these aggregates which penetrates the whole crystals and results in the formation of inter-connected mesopores. The methanol to gasoline (MTG) reaction has been applied as a probe reaction to evaluate the catalytic performance of ZSM-5 nanosheets. Compared with a ZSM-5 zeolite prepared without TPOAC, the multilamellar ZSM-5 nanosheets displayed an extraordinarily long MTG catalytic lifetime with a similar yield of gasoline range hydrocarbons, which could be reasonably attributed to the special morphology of the nanosheets. To reveal the crystallization mechanism of ZSM-5 nanosheets, the crystallization was stopped at different times first at 120 °C and then at 170 °C. The characterization results show that there exists a unique process of MCM-41-like mesophase formation and then transformation to crystalline MFI phases during a certain period of crystallization.

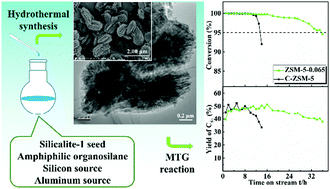

Graphical abstract: Seed-induced synthesis of multilamellar ZSM-5 nanosheets directed by amphiphilic organosilane

Back to tab navigation

Supplementary files

Publication details

The article was received on 25 Jul 2018, accepted on 10 Sep 2018 and first published on 10 Sep 2018


Article type: Paper
DOI: 10.1039/C8NJ03629B
Citation: New J. Chem., 2018,42, 17043-17055
  •   Request permissions

    Seed-induced synthesis of multilamellar ZSM-5 nanosheets directed by amphiphilic organosilane

    C. Fan, Y. Wang, H. Li, X. Wang, C. Sun, X. Zhang, C. Wang and S. Wang, New J. Chem., 2018, 42, 17043
    DOI: 10.1039/C8NJ03629B
