Jump to main content
Jump to site search

Issue 34, 2018
Previous Article Next Article

Reduced dielectric loss in new colossal permittivity (Pr, Nb)TiO2 ceramics by suppressing adverse effects of secondary phases

Author affiliations

Abstract

Here, we develop new colossal permittivity (CP) (Pr0.5Nb0.5)xTi1−xO2 ceramics by controlling the secondary phases, and then both colossal permittivity (εr = 6–8 × 104, 1 kHz) and low dielectric loss (tan δ = 3.7–7.5%, 1 kHz) can be realized in a composition range (x = 0.5–2.5%). The ceramics with x = 1% possess a high dielectric constant (εr = 74 533), and importantly a low dielectric loss (tan δ = 3.7%) can be found, which is lower than most of the typical CP materials and chemically modified TiO2 ceramics. In addition, the εr changing rates of 143 per degree Celsius and 35 per kiloHertz indicate an excellent temperature and frequency stability of the dielectric behaviors. XRD, FE-SEM and element mapping are conducted to probe the secondary phases, and element line scanning is used to explore the elemental composition of the secondary phases. The test results indicate that optimized dopants can enhance the dielectric properties, while secondary phases induced by x > 5% dopants can cause adverse effects on the dielectric properties. XPS results further demonstrate that the defect-dipole theory may be suitable to explain the significant improvement of dielectric properties. We believe that (Pr, Nb)TiO2 ceramics are one of the most competitive candidates in the field of electronic and energy-storage devices.

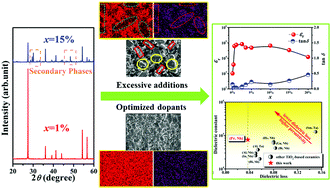

Graphical abstract: Reduced dielectric loss in new colossal permittivity (Pr, Nb)TiO2 ceramics by suppressing adverse effects of secondary phases

Back to tab navigation

Publication details

The article was received on 24 May 2018, accepted on 06 Aug 2018 and first published on 07 Aug 2018


Article type: Communication
DOI: 10.1039/C8CP03304H
Citation: Phys. Chem. Chem. Phys., 2018,20, 21814-21821
  •   Request permissions

    Reduced dielectric loss in new colossal permittivity (Pr, Nb)TiO2 ceramics by suppressing adverse effects of secondary phases

    Z. Liu, C. Zhao, B. Wu and J. Wu, Phys. Chem. Chem. Phys., 2018, 20, 21814
    DOI: 10.1039/C8CP03304H

Search articles by author

Spotlight

Advertisements
