The thermo-responsive behavior in molecular crystals of naphthalene diimides and their 3D printed thermochromic composites

Author affiliations

Abstract

Herein, we communicate that altering the number of carbon atoms on the alkoxyphenyl substituent in naphthalene diimides results in tunable thermo-salient behavior across a variety of temperatures. Additionally, these compounds were found to display reversible thermochromic behavior in the single crystalline state. We analyzed this behavior using differential scanning calorimetry (DSC), single crystal X-ray diffraction (SXRD), powder XRD (PXRD), and hot-stage microscopy. The heptoxyphenyl-, octoxyphenyl-, and nonoxyphenyl-derivatives exhibited “acrobatic” behavior—namely, bending, jumping, and splitting—upon an irreversible phase transition. This study contributes to a developing paradigm in the understanding of certain naphthalene diimide single crystals that the energy associated with irreversible phase transitions has the potential to perform mechanical work, and that the temperature at which this energy can be fine-tuned by selecting an appropriate alkoxyphenyl substituent. Furthermore, we show that these thermochromic NDI derivatives can be incorporated into commercially-available, polymeric 3D printing materials and the resulting printed mixed polymer-crystalline objects still exhibit thermochromic behavior after incorporation.

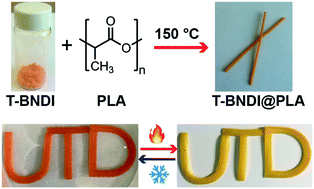

Graphical abstract: The thermo-responsive behavior in molecular crystals of naphthalene diimides and their 3D printed thermochromic composites

Back to tab navigation

Supplementary files

Publication details

The article was received on 15 May 2018, accepted on 03 Aug 2018 and first published on 06 Aug 2018


Article type: Paper
DOI: 10.1039/C8CE00798E
Citation: CrystEngComm, 2018,20, 6054-6060
  •   Request permissions

    The thermo-responsive behavior in molecular crystals of naphthalene diimides and their 3D printed thermochromic composites

    M. Dharmarwardana, B. S. Arimilli, M. A. Luzuriaga, S. Kwon, H. Lee, G. A. Appuhamillage, G. T. McCandless, R. A. Smaldone and J. J. Gassensmith, CrystEngComm, 2018, 20, 6054
    DOI: 10.1039/C8CE00798E
