Hollow polymer microcapsule embedded transparent and heat-insulating film

Author affiliations

Abstract

We herein report a facile and scalable approach to manufacturing optically transparent and heat-insulating films by incorporating hollow poly(methyl methacrylate) microcapsules into a transparent polymeric matrix. The microcapsule was prepared via emulsion polymerization. The size of the microcapsules could be easily controlled from ∼1 to 3 μm by varying the polymerization time in a narrow size distribution. The microcapsules were then mixed with a UV-curable transparent liquid resin and cured by a subsequent light irradiation. The current approach could enhance the thermal barrier property of the films without a significant reduction in the optical transparency. The solid film possessing 30 wt% microcapsules, for example, exhibited a high visible light transmittance (∼80% as measured by UV-vis spectroscopy) and the thermal conductivity was reduced to 0.06 W mK−1, corresponding to 46% of the capsule free film. To quantify and verify this result, theoretical models describing a heat transfer in a hollow microsphere composite were used, and the model showed a good agreement with our experimental observations.

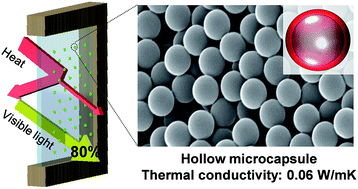

Graphical abstract: Hollow polymer microcapsule embedded transparent and heat-insulating film

Back to tab navigation

Supplementary files

Publication details

The article was received on 26 Jan 2018, accepted on 27 Feb 2018 and first published on 06 Mar 2018


Article type: Paper
DOI: 10.1039/C8RA00801A
RSC Adv., 2018,8, 9480-9486
  • Open access: Creative Commons BY license
  •   Request permissions

    Hollow polymer microcapsule embedded transparent and heat-insulating film

    C. B. Kim, N. You and M. Goh, RSC Adv., 2018, 8, 9480
    DOI: 10.1039/C8RA00801A
