Theoretical study on narrow Fano resonance of nanocrescent for the label-free detection of single molecules and single nanoparticles

Author affiliations

Abstract

This paper reports a narrow Fano resonance of 3D nanocrescent and its application in the label-free detection of single molecules. The Fano resonance depends not only on the gap size but also on the height. The Fano resonance originates from the interference between the quadrupolar mode supported by the horizontal crescent and the dipolar mode along the nanotip. When the height of 3D nanocrescent is 30 nm, the width of Fano resonance is as narrow as 10 nm. The narrow linewidth is caused by the strong narrow resonant absorption coming from the dipolar mode of nanotip overlapping with the quadrupolar mode of nanocrescent, where the absorption spectra are calculated under a horizontal incident light. The narrow Fano resonance is highly sensitive to a single nanoparticle trapped by the nanocrescent. The wavelength shift increases linearly with the refractive index with the relation of Δλ = 22.10n − 28.80, and increases with the size of trapped nanoparticle following a relation of Δλ = 0.826 × r1.672. These results indicate that if a protein nanoparticle with radius of 2.5 nm is trapped by the nanocrescent, the shift is as large as 4.03 nm.

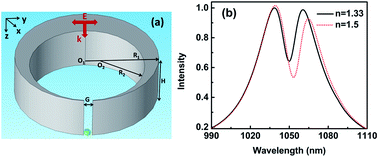

Graphical abstract: Theoretical study on narrow Fano resonance of nanocrescent for the label-free detection of single molecules and single nanoparticles

Back to tab navigation

Publication details

The article was received on 22 Nov 2017, accepted on 10 Jan 2018 and first published on 19 Jan 2018


Article type: Paper
DOI: 10.1039/C7RA12666B
RSC Adv., 2018,8, 3381-3391
  • Open access: Creative Commons BY license
  •   Request permissions

    Theoretical study on narrow Fano resonance of nanocrescent for the label-free detection of single molecules and single nanoparticles

    C. Zheng, T. Jia, H. Zhao, Y. Xia, S. Zhang, D. Feng and Z. Sun, RSC Adv., 2018, 8, 3381
    DOI: 10.1039/C7RA12666B
