User-defined local stimulation of live tissue through a movable microfluidic port

Author affiliations


Many in vivo tissue responses begin locally, yet most in vitro stimuli are delivered globally. Microfluidics has a unique ability to provide focal stimulation to tissue samples with precise control over fluid location, flow rate, and composition. However, previous devices utilizing fixed ports beneath the tissue required manual alignment of the tissue over the ports, increasing the risk of mechanical damage. Here we present a novel microfluidic device that allows the user to define the location of fluid delivery to a living tissue slice without manipulating the tissue itself. The device utilized a two-component SlipChip design to create a mobile port beneath the tissue slice. A culture chamber perforated by an array of ports housed a tissue slice and was separated by a layer of fluorocarbon oil from a single delivery port, fed by a microfluidic channel in the movable layer below. We derived and validated a physical model, based on interfacial tension and flow resistance, to predict the conditions under which fluid delivery occurred without leakage into the gap between layers. Aqueous solution was delivered reproducibly to samples of tissue and gel, and the width of the delivery region was controlled primarily by convection. Tissue slice viability was not affected by stimulation on the device. As a proof-of-principle, we showed that live slices of lymph node tissue could be sequentially targeted for precise stimulation. In the future this device may serve as a platform to study the effects of fluid flow in tissues and to perform local drug screening.

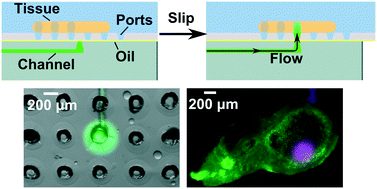

Graphical abstract: User-defined local stimulation of live tissue through a movable microfluidic port

Back to tab navigation

Supplementary files

Publication details

The article was received on 24 Feb 2018, accepted on 11 Jun 2018 and first published on 15 Jun 2018

Article type: Paper
DOI: 10.1039/C8LC00204E
Lab Chip, 2018,18, 2003-2012

  •   Request permissions

    User-defined local stimulation of live tissue through a movable microfluidic port

    M. A. Catterton, A. F. Dunn and R. R. Pompano, Lab Chip, 2018, 18, 2003
    DOI: 10.1039/C8LC00204E
