Improved stability and efficiency of perovskite solar cells with submicron flexible barrier films deposited in air

Author affiliations

Abstract

We report on submicron organosilicate barrier films produced rapidly in air by a scalable spray plasma process that improves both the stability and efficiency of perovskite solar cells. The plasma is at sufficiently low temperature to prevent damage to the underlying layers. Oxidizing species and heat from the plasma improve device performance by enhancing both interfacial contact and the conductivity of the hole transporting layer. The thickness of the barrier films is tunable and transparent over the entire visible spectrum. The morphology and density of the barrier are shown to improve with the addition of a fluorine-based precursor. Devices with submicron coatings exhibited significant improvements in stability, maintaining 92% of their initial power conversion efficiencies after more than 3000 h in dry heat (85 °C, 25% RH) while also being resistant to degradation under simulated operational conditions of continuous exposure to light, heat, and moisture. X-ray diffraction measurements performed while heating showed the barrier film dramatically slows the formation of PbI2. The barrier films also are compatible with flexible devices, exhibiting no signs of cracking or delamination after 10 000 bending cycles on a 127 μm substrate with a bending radius of 1 cm.

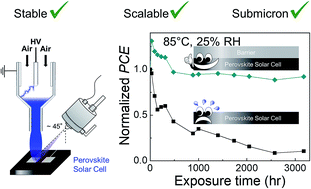

Graphical abstract: Improved stability and efficiency of perovskite solar cells with submicron flexible barrier films deposited in air

Back to tab navigation

Supplementary files

Publication details

The article was received on 18 Oct 2017, accepted on 27 Oct 2017 and first published on 27 Oct 2017


Article type: Communication
DOI: 10.1039/C7TA09178H
J. Mater. Chem. A, 2017,5, 22975-22983

  •   Request permissions

    Improved stability and efficiency of perovskite solar cells with submicron flexible barrier films deposited in air

    N. Rolston, A. D. Printz, F. Hilt, M. Q. Hovish, K. Brüning, C. J. Tassone and R. H. Dauskardt, J. Mater. Chem. A, 2017, 5, 22975
    DOI: 10.1039/C7TA09178H
