High-bandwidth nanopore data analysis by using a modified hidden Markov model

Author affiliations

Abstract

Nanopore-based sensing is an emerging analytical technique with a number of important applications, including single-molecule detection and DNA sequencing. In this paper, we developed a Modified Hidden Markov Model (MHMM) to analyze directly the raw (unfiltered) nanopore current blockade data, which significantly reduced the filtering-induced distortion of the nanopore events. Traditionally, prior to further analysis, the measured nanopore data need to be pre-filtered to supress the strong noises. Nonetheless, this would result in the distortion of the shape of the blockade current especially for rapid translocations and bumping blockades. The HMM has been proved to be robust with respect to highly noisy data and thus ideally suitable for processing raw nanopore data directly. Unfortunately, its performance is somehow sensitive to the initial parameters usually preset arbitrarily. To overcome this problem, we use the Fuzzy c-Means (FCM) algorithm to initialize the HMM parameters automatically. Then we use the Viterbi training algorithm to optimize the HMM. Finally, the application results on both the simulated and experimental data are presented to demonstrate the practicability of the developed method for accurate detection of the nanopore current blockade events. The proposed method enables detection of the nanopore events at the highest bandwidth of the commercial instruments to extract the true useful information about the single molecules under analysis.

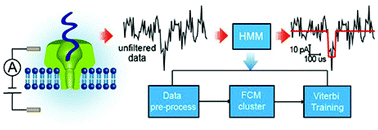

Graphical abstract: High-bandwidth nanopore data analysis by using a modified hidden Markov model

Back to tab navigation

Supplementary files

Publication details

The article was received on 24 Nov 2016, accepted on 14 Feb 2017 and first published on 16 Feb 2017


Article type: Paper
DOI: 10.1039/C6NR09135K
Nanoscale, 2017,9, 3458-3465

  •   Request permissions

    High-bandwidth nanopore data analysis by using a modified hidden Markov model

    J. Zhang, X. Liu, Y. Ying, Z. Gu, F. Meng and Y. Long, Nanoscale, 2017, 9, 3458
    DOI: 10.1039/C6NR09135K
