Simultaneous enhancement of performance and insensitivity to active layer thickness for OPVs by functionalizing π-spacer's side chain

Author affiliations

Abstract

In the design of high performance conjugated copolymers, π-spacer plays one of the most important roles in finely manipulating photovoltaic properties of the polymers. However, up to now, little attention has been paid to functionalize the π-spacer. In this work, a novel D–A conjugated copolymer PBTI3T-S, with 3-(decylthio)thiophene as the π-spacer, is designed and synthesized. The introduction of a modified π-spacer has little influence on the absorption spectrum and band gap of the polymer. However, it is found that the modified π-spacer could create a noncovalent attractive interaction between neighboring moieties, resulting in good planarity and decreased π–π stacking distance in comparison to its analogue PBTI3T with decyl substitution on the π-spacers. More interestingly, the face-on population of crystallite orientation is significantly enhanced. Thus, the hole mobility of the PBTI3T-S/PC71BM blend is 1.29 × 10−2 cm2 V−1 s−1, which is one order of magnitude higher than that of the PBTI3T/PC71BM blend (1.15 × 10−3 cm2 V−1 s−1). The PBTI3T-S device provides a higher PCE of 7.14%, while the optimized PBTI3T device provides 6.51%. Impressively, the PCEs of the PBTI3T-S device can remain above 7% without substantial loss as the active layer thickness increases up to ∼270 nm, while the PCE reduces to 5.70% for the PBTI3T. These results demonstrate that the introduction of an alkylthio chain modified π-spacer would be an effective way to further improve the device performance and provide a guideline for molecular engineering towards the application of the roll to roll printing technique.

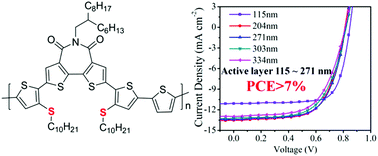

Graphical abstract: Simultaneous enhancement of performance and insensitivity to active layer thickness for OPVs by functionalizing π-spacer's side chain

Back to tab navigation

Supplementary files

Publication details

The article was received on 30 May 2016, accepted on 12 Jul 2016 and first published on 13 Jul 2016


Article type: Paper
DOI: 10.1039/C6PY00920D
Polym. Chem., 2016,7, 5366-5374

  •   Request permissions

    Simultaneous enhancement of performance and insensitivity to active layer thickness for OPVs by functionalizing π-spacer's side chain

    D. Yang, T. Zhang, X. Zhao, G. Zeng, Z. Li, Y. Tian, F. He, J. Zhang and X. Yang, Polym. Chem., 2016, 7, 5366
    DOI: 10.1039/C6PY00920D
