Angular resolution dependency in 2D LA-ICP-MS mapping – the case for low-dispersion laser ablation cells

Author affiliations

Abstract

In LA-ICP-MS imaging mostly lateral resolution is considered, but this work will show that linear artifacts with an angular aspect to the line scan direction may have a different spatial resolution, depending on the blur introduced by LA sampling and aerosol washout/transfer. This implies that upon scanning an irregularly shaped artifact, the spatial resolution in different locations may vary, the severity of which will be a function of the amount of “smearing” induced by the LA-ICP-MS system, invariably related to the design of the LA cell and aerosol washout/transfer efficiency. As reported previously (DOI: 10.1021/acs.analchem.6b02052), blur can be expressed as a convolution of the input image (representing the 2D elemental distribution) with point (PSF) and line (LSF) spread functions associated with ablation crater profiles and ICP-MS profiles of single pulses, respectively. Based on empirically derived PSFs and LSFs, and using a numerical calculation approach, the continuous-scanning LA-ICP-MS output of an angular-sensitive radial resolution target (Siemens star) was simulated to visualize the angular resolution dependency associated with ablation cell characteristics.

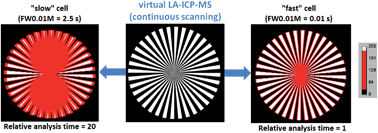

Graphical abstract: Angular resolution dependency in 2D LA-ICP-MS mapping – the case for low-dispersion laser ablation cells

Back to tab navigation

Publication details

The article was received on 30 Jun 2016, accepted on 20 Jul 2016 and first published on 20 Jul 2016


Article type: Paper
DOI: 10.1039/C6JA00234J
J. Anal. At. Spectrom., 2016,31, 1998-2004

  •   Request permissions

    Angular resolution dependency in 2D LA-ICP-MS mapping – the case for low-dispersion laser ablation cells

    J. T. van Elteren and F. Vanhaecke, J. Anal. At. Spectrom., 2016, 31, 1998
    DOI: 10.1039/C6JA00234J
