Wafer-scale growth of MoS2 thin films by atomic layer deposition

Author affiliations

Abstract

The wafer-scale synthesis of MoS2 layers with precise thickness controllability and excellent uniformity is essential for their application in the nanoelectronics industry. Here, we demonstrate the atomic layer deposition (ALD) of MoS2 films with Mo(CO)6 and H2S as the Mo and S precursors, respectively. A self-limiting growth behavior is observed in the narrow ALD window of 155–175 °C. Long H2S feeding times are necessary to reduce the impurity contents in the films. The as-grown MoS2 films are amorphous due to the low growth temperature. Post-annealing at high temperatures under a H2S atmosphere efficiently improves the film properties including the crystallinity and chemical composition. An extremely uniform film growth is achieved even on a 4 inch SiO2/Si wafer. These results demonstrate that the current ALD process is well suited for the synthesis of MoS2 layers for application in industry.

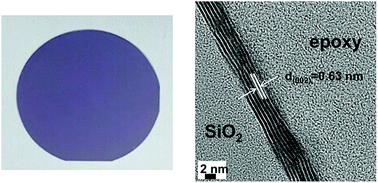

Graphical abstract: Wafer-scale growth of MoS2 thin films by atomic layer deposition

Back to tab navigation

Publication details

The article was received on 17 Feb 2016, accepted on 24 Apr 2016 and first published on 26 Apr 2016


Article type: Paper
DOI: 10.1039/C6NR01346E
Nanoscale, 2016,8, 10792-10798

  •   Request permissions

    Wafer-scale growth of MoS2 thin films by atomic layer deposition

    J. J. Pyeon, S. H. Kim, D. S. Jeong, S. Baek, C. Kang, J. Kim and S. K. Kim, Nanoscale, 2016, 8, 10792
    DOI: 10.1039/C6NR01346E
