Crystallization of zirconia based thin films

Author affiliations


The crystallization kinetics of amorphous 3 and 8 mol% yttria stabilized zirconia (3YSZ and 8YSZ) thin films grown by pulsed laser deposition (PLD), spray pyrolysis and dc-magnetron sputtering are explored. The deposited films were heat treated up to 1000 °C ex situ and in situ in an X-ray diffractometer. A minimum temperature of 275 °C was determined at which as-deposited amorphous PLD grown 3YSZ films fully crystallize within five hours. Above 325 °C these films transform nearly instantaneously with a high degree of micro-strain when crystallized below 500 °C. In these films the t′′ phase crystallizes which transforms at T > 600 °C to the t′ phase upon relaxation of the micro-strain. Furthermore, the crystallization of 8YSZ thin films grown by PLD, spray pyrolysis and dc-sputtering are characterized by in situ XRD measurements. At a constant heating rate of 2.4 K min−1 crystallization is accomplished after reaching 800 °C, while PLD grown thin films were completely crystallized already at ca. 300 °C.

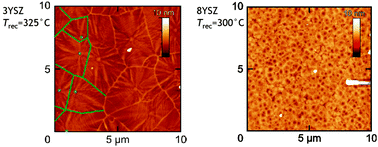

Graphical abstract: Crystallization of zirconia based thin films

Back to tab navigation

Publication details

The article was received on 06 May 2015, accepted on 19 Jun 2015 and first published on 23 Jun 2015

Article type: Paper
DOI: 10.1039/C5CP02631H
Author version
Download author version (PDF)
Phys. Chem. Chem. Phys., 2015,17, 18613-18620

  •   Request permissions

    Crystallization of zirconia based thin films

    D. Stender, R. Frison, K. Conder, J. L. M. Rupp, B. Scherrer, J. M. Martynczuk, L. J. Gauckler, C. W. Schneider, T. Lippert and A. Wokaun, Phys. Chem. Chem. Phys., 2015, 17, 18613
    DOI: 10.1039/C5CP02631H
