Issue 43, 2015

Ultra-low temperature epitaxial growth of lithium ferrite thin films by high-pressure sputtering

Abstract

LiFe5O8 epitaxial thin films with high crystalline quality have been successfully synthesized on (001) MgAl2O4 substrates even at an ultra-low working temperature of 200 °C by using a high-pressure radio-frequency sputtering system. Better crystalline qualities of the epitaxial LiFe5O8 films can be obtained with an increase of the deposition temperature in the range from 200 °C to 800 °C. Moreover, the growth temperature can significantly affect the magnetic properties of the LiFe5O8 thin films. The strain states, crystalline quality and defect density should be the main causes for the tunable magnetic properties. Overall, the wide-temperature range processing window, especially the low deposition temperature of 200 °C, of the LiFe5O8 films by this method will offer flexibilities for direct integration with semiconductors, organic electronics, flexible electronic materials and other related elements which are sensitive to the processing temperature.

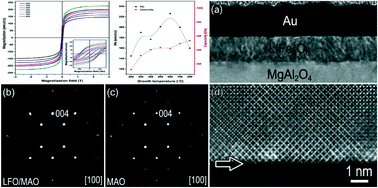

Graphical abstract: Ultra-low temperature epitaxial growth of lithium ferrite thin films by high-pressure sputtering

Article information

Article type
Paper
Submitted
25 Jul 2015
Accepted
23 Sep 2015
First published
23 Sep 2015

CrystEngComm, 2015,17, 8256-8263

Ultra-low temperature epitaxial growth of lithium ferrite thin films by high-pressure sputtering

R. Zhang, M. Liu, L. Lu, S. Mi and H. Wang, CrystEngComm, 2015, 17, 8256 DOI: 10.1039/C5CE01477H
