Solar-microbial hybrid device based on oxygen-deficient niobium pentoxide anodes for sustainable hydrogen production

Author affiliations

Abstract

Hydrogen gas is emerging as an attractive fuel with high energy density for the direction of energy resources in the future. Designing integrated devices based on a photoelectrochemical (PEC) cell and a microbial fuel cell (MFC) represents a promising strategy to produce hydrogen fuel at a low price. In this work, we demonstrate a new solar-microbial (PEC–MFC) hybrid device based on the oxygen-deficient Nb2O5 nanoporous (Nb2O5−x NPs) anodes for sustainable hydrogen generation without external bias for the first time. Owing to the improved conductivity and porous structure, the as-prepared Nb2O5−x NPs film yields a remarkable photocurrent density of 0.9 mA cm−2 at 0.6 V (vs. SCE) in 1 M KOH aqueous solution under light irradiation, and can achieve a maximum power density of 1196 mW m−2 when used as an anode in a MFC device. More importantly, a solar-microbial hybrid system by combining a PEC cell with a MFC is designed, in which the Nb2O5−x NPs electrodes function as both anodes. The as-fabricated PEC–MFC hybrid device can simultaneously realize electricity and hydrogen using organic matter and solar light at zero external bias. This novel design and attempt might provide guidance for other materials to convert and store energy.

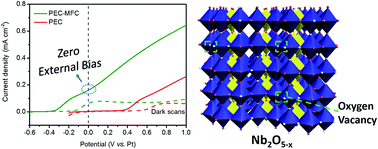

Graphical abstract: Solar-microbial hybrid device based on oxygen-deficient niobium pentoxide anodes for sustainable hydrogen production

Back to tab navigation

Supplementary files

Publication details

The article was received on 31 Aug 2015, accepted on 18 Sep 2015 and first published on 18 Sep 2015


Article type: Edge Article
DOI: 10.1039/C5SC03249K
Author version
available:
Download author version (PDF)
Chem. Sci., 2015,6, 6799-6805
  • Open access: Creative Commons BY license
    All publication charges for this article have been paid for by the Royal Society of Chemistry

  •   Request permissions

    Solar-microbial hybrid device based on oxygen-deficient niobium pentoxide anodes for sustainable hydrogen production

    M. Li, X. He, Y. Zeng, M. Chen, Z. Zhang, H. Yang, P. Fang, X. Lu and Y. Tong, Chem. Sci., 2015, 6, 6799
    DOI: 10.1039/C5SC03249K
