Edge contacts of graphene formed by using a controlled plasma treatment

Author affiliations

Abstract

Despite the fact that the outstanding properties of graphene are well known, the electrical performance of the material is limited by the contact resistance at the metal–graphene interface. In this study, we demonstrate the formation of “edge-contacted” graphene through the use of a controlled plasma processing technique that generates a bond between the graphene edge and the contact metal. This technique controls the edge structure of the bond and significantly reduces the contact resistance. This simple approach requires no additional post-processing and has been proven to be very effective. In addition, controlled pre-plasma processing was applied in order to produce CVD-graphene field effect transistors with an enhanced adhesion and improved carrier mobility. The contact resistance attained by using pre-plasma processing was 270 Ω μm, which is a decrease of 77%.

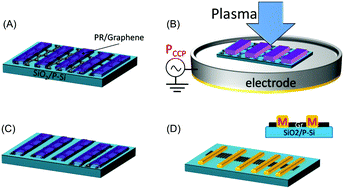

Graphical abstract: Edge contacts of graphene formed by using a controlled plasma treatment

Back to tab navigation

Supplementary files

Publication details

The article was received on 30 Sep 2014, accepted on 18 Nov 2014 and first published on 20 Nov 2014


Article type: Paper
DOI: 10.1039/C4NR05725B
Nanoscale, 2015,7, 825-831

  •   Request permissions

    Edge contacts of graphene formed by using a controlled plasma treatment

    D. W. Yue, C. H. Ra, X. C. Liu, D. Y. Lee and W. J. Yoo, Nanoscale, 2015, 7, 825
    DOI: 10.1039/C4NR05725B
