Synergistically optimized electrical and thermal transport properties of SnTe via alloying high-solubility MnTe

Author affiliations

Abstract

Lead chalcogenides are the most efficient thermoelectric materials. In comparison, SnTe, a lead-free analogue of PbTe, exhibits inferior thermoelectric performance due to low Seebeck coefficient and high thermal conductivity. In this report, we show that we can synergistically optimize the electrical and thermal transport properties of SnTe via alloying Mn. We report that the introduction of Mn (0–50%) induces multiple effects on the band structure and microstructure of SnTe: for the former, it can tune the Fermi level and promote the convergence of the two valence bands, concurrently enhancing the Seebeck coefficient; for the latter, it can profoundly modify the microstructure into an all-scale hierarchical architecture (including nanoscale precipitates/MnTe laminates, stacking faults, layered structure, atomic-scale point defects, etc.) to scatter phonons with a broad range of mean free paths, strongly reducing the lattice thermal conductivity. Meanwhile, most significantly, the Mn alloying enlarges the energy gap of the conduction band (C band) and the light valence band (L band), thereby suppressing the bipolar thermal conductivity by increasing the band gap. The integration of these effects yields a high ZT of 1.3 at 900 K for 17% Mn alloyed SnTe.

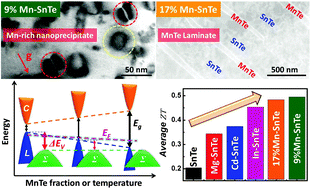

Graphical abstract: Synergistically optimized electrical and thermal transport properties of SnTe via alloying high-solubility MnTe

Back to tab navigation

Supplementary files

Article information


Submitted
06 Aug 2015
Accepted
07 Sep 2015
First published
07 Sep 2015

Energy Environ. Sci., 2015,8, 3298-3312
Article type
Paper
Author version available

Synergistically optimized electrical and thermal transport properties of SnTe via alloying high-solubility MnTe

H. Wu, C. Chang, D. Feng, Y. Xiao, X. Zhang, Y. Pei, L. Zheng, D. Wu, S. Gong, Y. Chen, J. He, M. G. Kanatzidis and L. Zhao, Energy Environ. Sci., 2015, 8, 3298
DOI: 10.1039/C5EE02423D
