Topological events in single molecules of E. coli DNA confined in nanochannels

Author affiliations

Abstract

We present experimental data concerning potential topological events such as folds, internal backfolds, and/or knots within long molecules of double-stranded DNA when they are stretched by confinement in a nanochannel. Genomic DNA from E. coli was labeled near the ‘GCTCTTC’ sequence with a fluorescently labeled dUTP analog and stained with the DNA intercalator YOYO. Individual long molecules of DNA were then linearized and imaged using methods based on the NanoChannel Array technology (Irys® System) available from BioNano Genomics. Data were collected on 189 153 molecules of length greater than 50 kilobases. A custom code was developed to search for abnormal intensity spikes in the YOYO backbone profile along the length of individual molecules. By correlating the YOYO intensity spikes with the aligned barcode pattern to the reference, we were able to correlate the bright intensity regions of YOYO with abnormal stretching in the molecule, which suggests these events were either a knot or a region of internal backfolding within the DNA. We interpret the results of our experiments involving molecules exceeding 50 kilobases in the context of existing simulation data for relatively short DNA, typically several kilobases. The frequency of these events is lower than the predictions from simulations, while the size of the events is larger than simulation predictions and often exceeds the molecular weight of the simulated molecules. We also identified DNA molecules that exhibit large, single folds as they enter the nanochannels. Overall, topological events occur at a low frequency (∼7% of all molecules) and pose an easily surmountable obstacle for the practice of genome mapping in nanochannels.

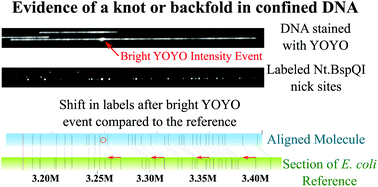

Graphical abstract: Topological events in single molecules of E. coli DNA confined in nanochannels

Back to tab navigation

Supplementary files

Publication details

The article was received on 19 Feb 2015, accepted on 13 May 2015 and first published on 15 May 2015


Article type: Paper
DOI: 10.1039/C5AN00343A
Author version
available:
Download author version (PDF)
Analyst, 2015,140, 4887-4894
  • Open access: Creative Commons BY license
  •   Request permissions

    Topological events in single molecules of E. coli DNA confined in nanochannels

    J. G. Reifenberger, K. D. Dorfman and H. Cao, Analyst, 2015, 140, 4887
    DOI: 10.1039/C5AN00343A

    This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. Material from this article can be used in other publications provided that the correct acknowledgement is given with the reproduced material.
