Three-dimensional multilevel porous thin graphite nanosuperstructures for Ni(OH)2-based energy storage devices

Author affiliations

Abstract

We report an innovative mechanism for the synthesis of 3-D multilevel porous graphite superstructures using strategically engineered Cu–Ni catalysts. The 3-D thin-graphite nanostructures with two levels of porosity were synthesized by using porous nickel–copper (Ni–Cu) catalysts—engineered from Ni foams via an electrodeposition/etching process. The as-grown graphite is 3-D, multilevel porous, freestanding, and flexible after selective etching of the catalysts. The graphite coated with thin nickel hydroxide nanoplates [Ni(OH)2] was applied as electrodes for alkaline batteries. The electrodes are binder-free and offer a remarkable discharge capacity of ∼480 mA h g−1 at a rate of 1.5 A g−1. Compared to previous reports, they also exhibit excellent cyclability with 97.5% capacitance retention after 4000 cycles. The high performance of the electrodes of porous graphite/Ni(OH)2 could be attributed to the large specific surface area, excellent crystalline quality, controlled Ni(OH)2 nanocrystalline assemblies, and high electric conductivity. Overall, the reported mechanism for the synthesis of 3-D porous graphite is the first of its kind, which may potentially spur a new paradigm for manufacturing 3-D porous graphene/graphite materials for an array of energy storage applications.

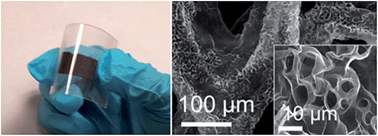

Graphical abstract: Three-dimensional multilevel porous thin graphite nanosuperstructures for Ni(OH)2-based energy storage devices

Back to tab navigation

Supplementary files

Publication details

The article was received on 25 May 2014, accepted on 17 Jul 2014 and first published on 18 Jul 2014


Article type: Paper
DOI: 10.1039/C4TA02617A
J. Mater. Chem. A, 2014,2, 15768-15773

  •   Request permissions

    Three-dimensional multilevel porous thin graphite nanosuperstructures for Ni(OH)2-based energy storage devices

    J. Ning, X. Xu, C. Liu and D. L. Fan, J. Mater. Chem. A, 2014, 2, 15768
    DOI: 10.1039/C4TA02617A
