A filter paper-based microdevice for low-cost, rapid, and automated DNA extraction and amplification from diverse sample types

Abstract

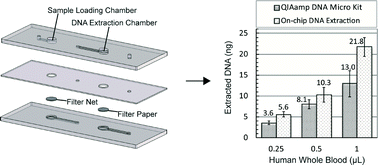

A plastic microfluidic device that integrates a filter disc as a DNA capture phase was successfully developed for low-cost, rapid and automated DNA extraction and PCR amplification from various raw samples. The microdevice was constructed by sandwiching a piece of Fusion 5 filter, as well as a PDMS (polydimethylsiloxane) membrane, between two PMMA (poly(methyl methacrylate)) layers. An automated DNA extraction from 1 μL of human whole blood can be finished on the chip in 7 minutes by sequentially aspirating NaOH, HCl, and water through the filter. The filter disc containing extracted DNA was then taken out directly for PCR. On-chip DNA purification from 0.25–1 μL of human whole blood yielded 8.1–21.8 ng of DNA, higher than those obtained using QIAamp® DNA Micro kits. To realize DNA extraction from raw samples, an additional sample loading chamber containing a filter net with an 80 μm mesh size was designed in front of the extraction chamber to accommodate sample materials. Real-world samples, including whole blood, dried blood stains on Whatman® 903 paper, dried blood stains on FTA™ cards, buccal swabs, saliva, and cigarette butts, can all be processed in the system in 8 minutes. In addition, multiplex amplification of 15 STR (short tandem repeat) loci and Sanger-based DNA sequencing of the 520 bp GJB2 gene were accomplished from the filters that contained extracted DNA from blood. To further prove the feasibility of integrating this extraction method with downstream analyses, “in situ” PCR amplifications were successfully performed in the DNA extraction chamber following DNA purification from blood and blood stains without DNA elution. Using a modified protocol to bond the PDMS and PMMA, our plastic PDMS devices withstood the PCR process without any leakage. This study represents a significant step towards the practical application of on-chip DNA extraction methods, as well as the development of fully integrated genetic analytical systems.
