Photoluminescent nanographitic/nitrogen-doped graphitic hollow shells as a potential candidate for biological applications

Author affiliations

Abstract

Water-dispersible graphitic hollow spheres were synthesized using a soft chemical route under hydrothermal conditions by glucose carbonization using a magnetite/silica-encapsulated core–shell sphere as a template. Carbonization on the templates happens as the magnetite core is partially or completely eliminated depending on the reaction conditions. Therefore, nano-sized graphitic hollow spheres or magnetite-core-encapsulated graphitic shells could be obtained. Also nitrogen-doped graphitic spheres were synthesized by a hydrothermal reaction. The graphitic and nitrogen-doped graphitic spheres show wavelength dependent photoluminescence in 300–600 nm range. The photoluminescence seems to depend on the fraction of the sp2 domains and N-doping, therefore, tunable PL emission can be achieved by controlling the nature of sp2 sites. In addition the cellular uptake of the graphitic hollow spheres was evaluated in human HeLa cells, demonstrating its main localization in the cytoplasm. A blue fluorescence signal was the most intensively observed in the cellular uptake process, although some green and red fluorescence was also observed. Since the cores of Fe3O4 could be completely or partly eliminated in a controllable way, it can be used as a magnetic resonance imaging agent. In addition, their easily modifiable hydrophilic surfaces for multi-functionality and hydrophobic voids covered by oxidized graphite make them promising candidates for applications in cellular photo-imaging and targeted drug delivery.

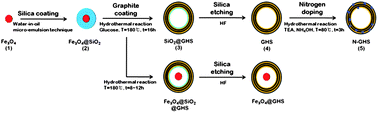

Graphical abstract: Photoluminescent nanographitic/nitrogen-doped graphitic hollow shells as a potential candidate for biological applications

Back to tab navigation

Supplementary files

Article information


Submitted
06 Oct 2012
Accepted
07 Jan 2013
First published
24 Jan 2013

J. Mater. Chem. B, 2013,1, 1229-1234
Article type
Paper

Photoluminescent nanographitic/nitrogen-doped graphitic hollow shells as a potential candidate for biological applications

J. Park, E. D. Grayfer, Y. Jung, K. Kim, K. Wang, Y. Kim, D. Yoon, H. Cheong, H. Chung, S. Choi, J. Choy and S. Kim, J. Mater. Chem. B, 2013, 1, 1229
DOI: 10.1039/C2TB00210H
