Issue 21, 2013
Previous Article Next Article

Liquid chromatography-matrix-assisted laser desorption/ionization mass spectrometric imaging with sprayed matrix for improved sensitivity, reproducibility and quantitation

Author affiliations

Abstract

Matrix-assisted laser desorption/ionization (MALDI) mass spectrometric imaging (MSI) has been employed as a detection method for both capillary electrophoresis (CE)-MALDI and liquid chromatography (LC)-MALDI analyses. Based on our previous studies, here we report a new interface to couple LC with MSI by employing an automated matrix sprayer. The LC trace is directly collected on a ground stainless steel MALDI plate and dried. The matrix is sprayed on the MALDI plate using a programmable matrix sprayer. With the highly uniform matrix layers produced from the sprayer, the MS image signal quality is significantly improved with enhanced signal-to-noise ratios for analyte peaks. With the programmable matrix application and imaging MS data acquisition, the new LC-MSI platform exhibits highly stable and reproducible performance. A total of 87 bovine serum albumin (BSA) tryptic peptides and 295 putative neuropeptides from blue crab pericardial organs have been observed with LC-MSI analysis, exhibiting better performance in terms of peptide coverage than regular LC-MALDI with discrete spot collection and our previously reported LC-MSI interface with the matrix being delivered by a capillary. In addition to relative quantitation with isotopic labeling as we have previously demonstrated, we performed the first absolute quantitation using the new LC-MSI platform and obtained accurate quantitation results for neuropeptides, indicating great potential for quantitative analysis of complex samples.

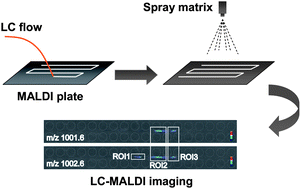

Graphical abstract: Liquid chromatography-matrix-assisted laser desorption/ionization mass spectrometric imaging with sprayed matrix for improved sensitivity, reproducibility and quantitation

Back to tab navigation

Supplementary files

Publication details

The article was received on 22 Jun 2013, accepted on 29 Jul 2013 and first published on 31 Jul 2013


Article type: Paper
DOI: 10.1039/C3AN01225E
Analyst, 2013,138, 6600-6606

  •   Request permissions

    Liquid chromatography-matrix-assisted laser desorption/ionization mass spectrometric imaging with sprayed matrix for improved sensitivity, reproducibility and quantitation

    Z. Zhang, J. Kuang and L. Li, Analyst, 2013, 138, 6600
    DOI: 10.1039/C3AN01225E
