Modified zeolite ZSM-5 for the methanol to aromatics reaction

Abstract

Catalysts comprising zeolite ZSM-5 impregnated with precious metals including Ag, Cu, Ni, Pd, Ir and Ru, have been tested for the methanol to hydrocarbons reaction in a continuous flow fixed bed reactor. Comparison with the activity of unmodified ZSM-5 showed that Ag, Cu and Ni enhanced the selectivity to C6–C11 aromatic products by a factor of two or higher. Moreover, Ag/ZSM-5 showed improved selectivity for the C6–C7 fraction of aromatic products. Ni/ZSM-5 was found to be selective to naphthalene, while Cu/ZSM-5 was selective for C9–C11 aromatic products. It was ascertained that all the impregnated metals were present as metal oxides in the starting materials. It is therefore proposed that the enhanced selectivity to aromatic products is due to the interaction of the acid sites of the zeolite with the basic sites of the metal oxide at the edge of the zeolite crystals, as well as the possible coordination of propene molecules formed during the reaction, that are likely to be the building blocks for the formation of aromatics.

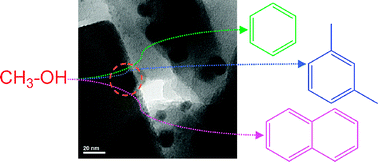

Graphical abstract: Modified zeolite ZSM-5 for the methanol to aromatics reaction

Supplementary files

Article information

Article type
Paper
Submitted
01 Aug 2011
Accepted
07 Oct 2011
First published
27 Oct 2011

Catal. Sci. Technol., 2012,2, 105-112

Modified zeolite ZSM-5 for the methanol to aromatics reaction

M. Conte, J. A. Lopez-Sanchez, Q. He, D. J. Morgan, Y. Ryabenkova, J. K. Bartley, A. F. Carley, S. H. Taylor, C. J. Kiely, K. Khalid and G. J. Hutchings, Catal. Sci. Technol., 2012, 2, 105 DOI: 10.1039/C1CY00299F
