Immobilizing NIR absorbing azulenocyanines onto single wall carbon nanotubes—from charge transfer to photovoltaics

Author affiliations

Abstract

In this fundamental study, the supramolecular interactions between SWNTs and either symmetrical Zn(II) octa-tert-butylazulenocyanine 1 or a Zn(II) azulenocyanine-phthalocyanine 2 bearing a pyrene unit have been evaluated. The synthetic protocol allowed for the preparation of unsymmetrical azulenocyanine-phthalocyanine molecules, which incorporate reactive hydroxyl functional groups useful for the preparation of more elaborate derivatives, that is, the pyrene containing derivative 2 by an esterification reaction. To shed light onto the mutual interactions between 1 or 2 and SWNT, stable suspensions of SWNT in a mixture of 25% THF and 75% DMF were titrated with variable amounts of 1 or 2. These assays indicate a successful immobilization of azulenocyanine derivatives 1 or 2 onto SWNTs to yield the supramolecular hybrids SWNT/1 and SWNT/2. In this light, the physico-chemical properties of 1 and 2 as well as those of SWNT/1 and SWNT/2 were investigated. From these we conclude strong interactions in the ground state, and a rapid charge separation in the excited state of SWNT/1 or SWNT/2. The accordingly formed radical ion pair states decay with lifetimes of 124 and 137 ps for SWNT/1 and SWNT/2, respectively. Finally, SWNT/1 and SWNT/2 were integrated into photoelectrochemical cells, revealing a response throughout the visible and near-infrared with a moderate IPCE maxima of 2.5%.

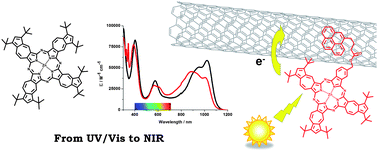

Graphical abstract: Immobilizing NIR absorbing azulenocyanines onto single wall carbon nanotubes—from charge transfer to photovoltaics

Back to tab navigation

Supplementary files

Article information


Submitted
15 Jan 2012
Accepted
22 Feb 2012
First published
24 Feb 2012

Chem. Sci., 2012,3, 1472-1480
Article type
Edge Article

Immobilizing NIR absorbing azulenocyanines onto single wall carbon nanotubes—from charge transfer to photovoltaics

M. Ince, J. Bartelmess, D. Kiessling, K. Dirian, M. V. Martínez-Díaz, T. Torres and D. M. Guldi, Chem. Sci., 2012, 3, 1472
DOI: 10.1039/C2SC20071F
